SS Pallet Truck
₹78,000.00
Model No – SI-HPT106

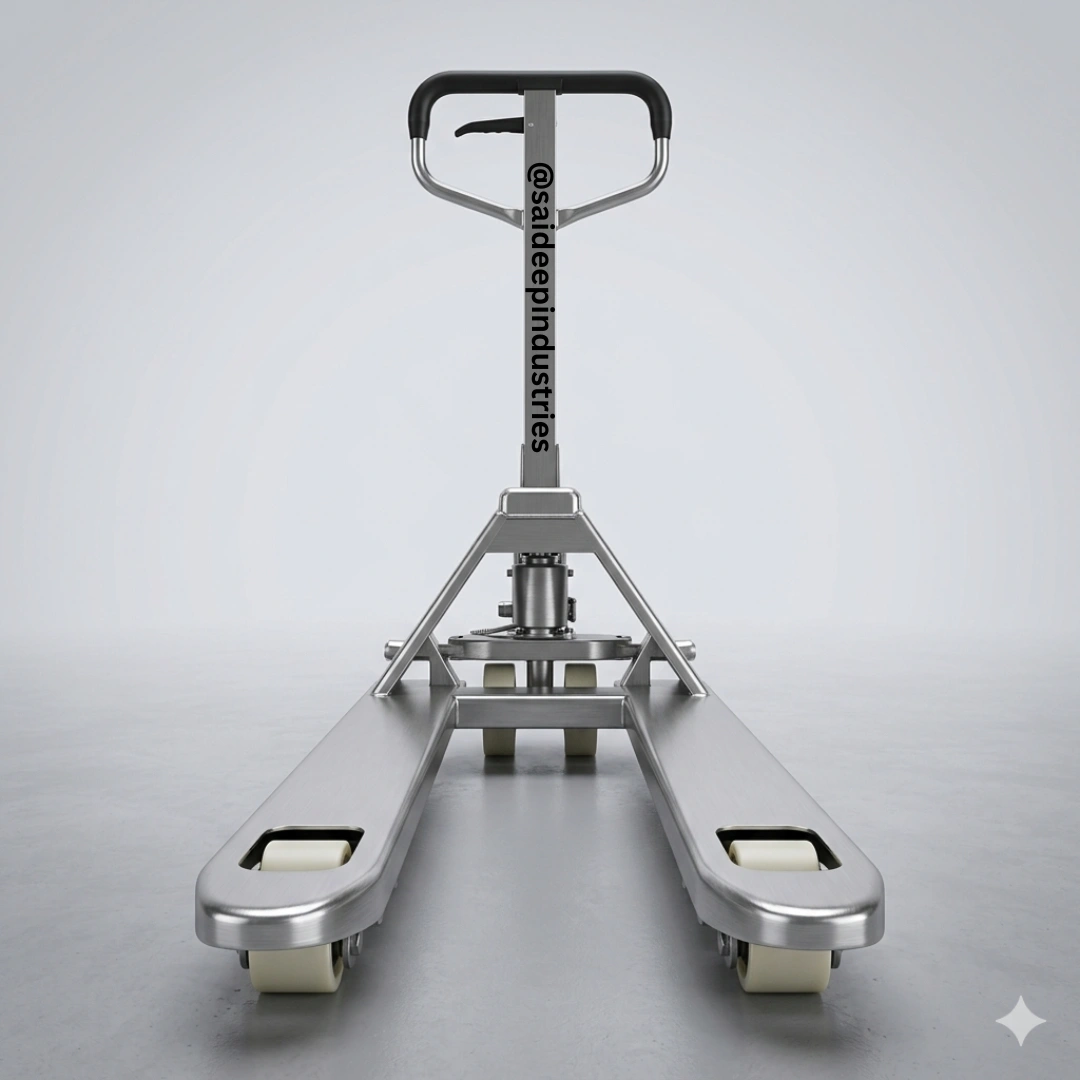

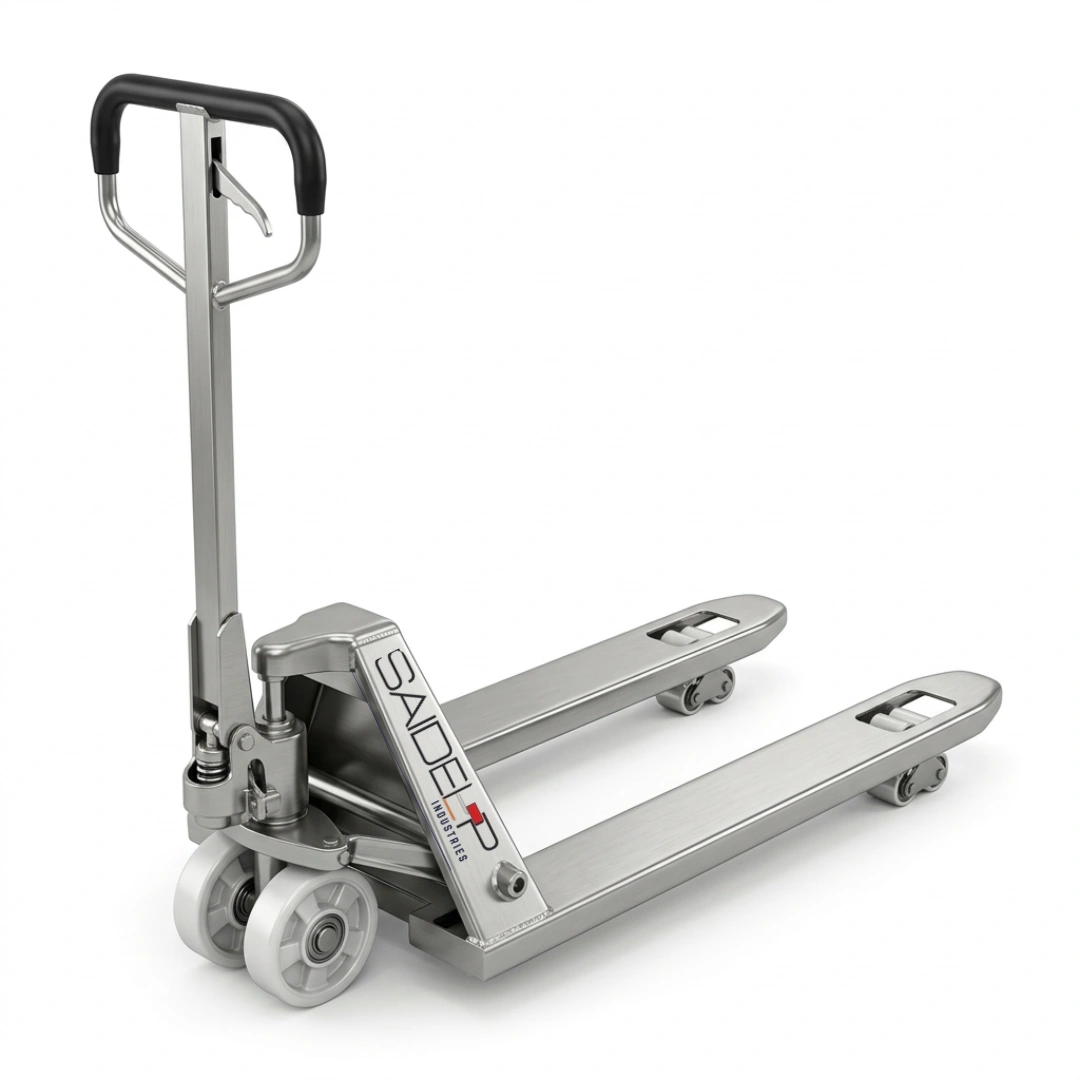

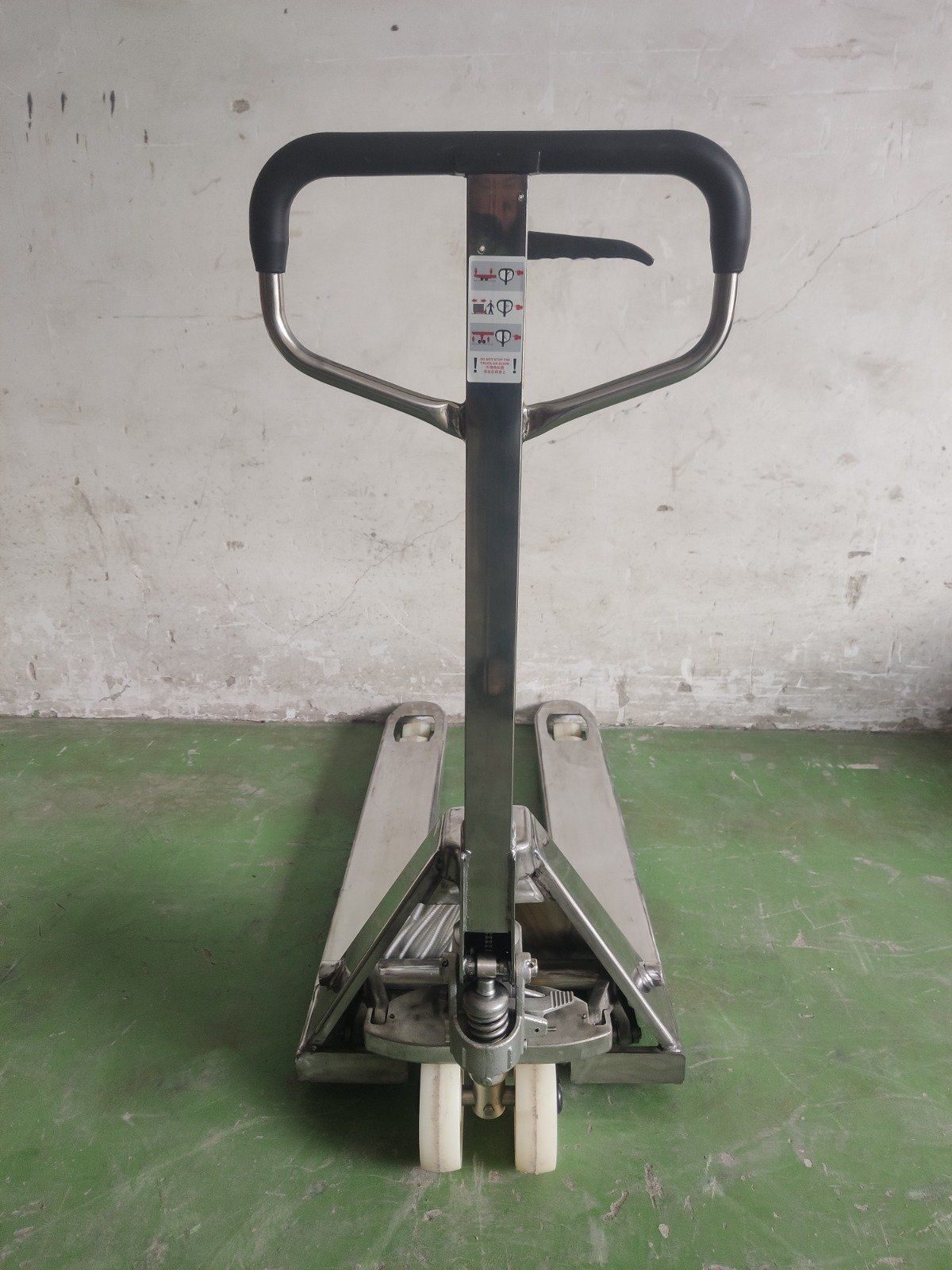

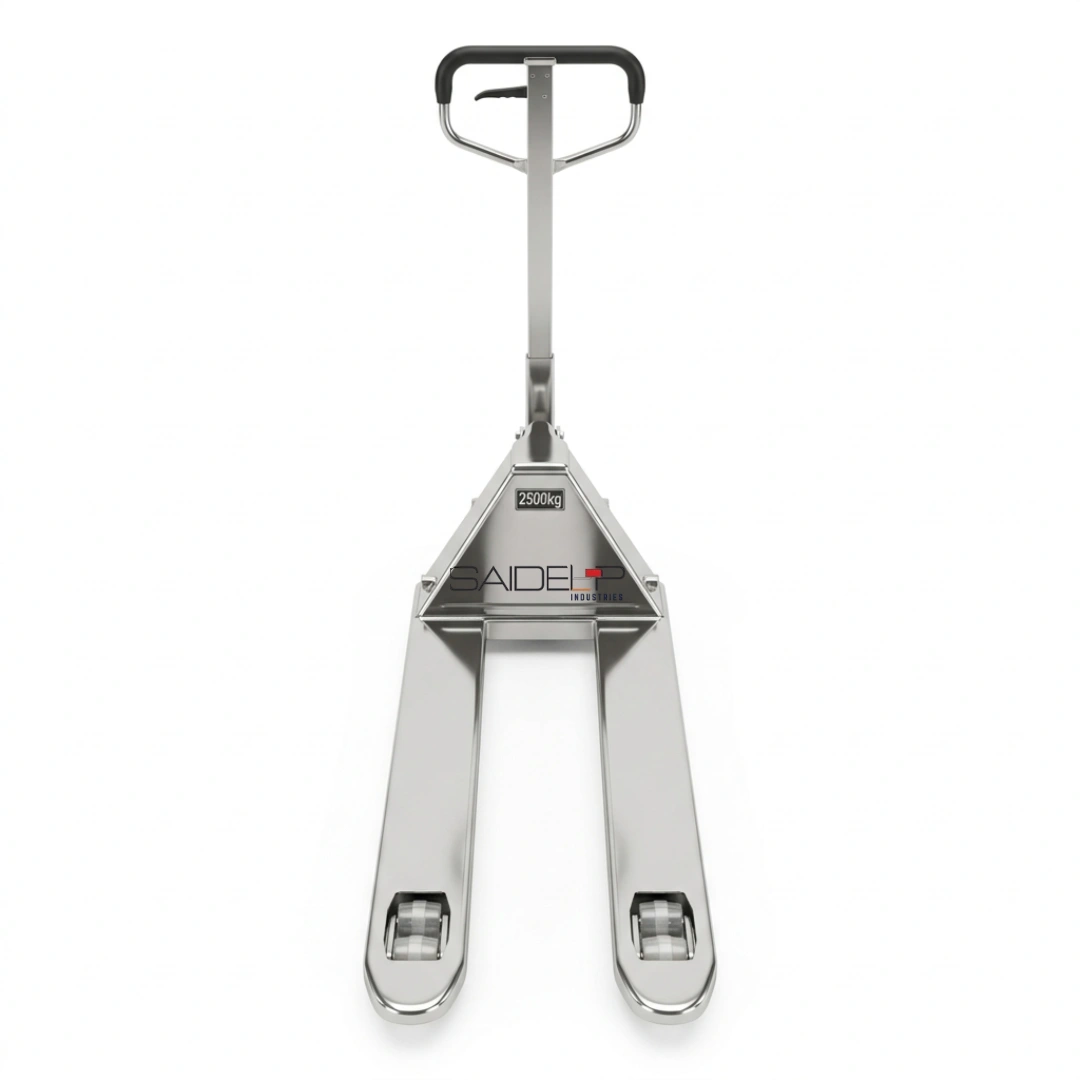

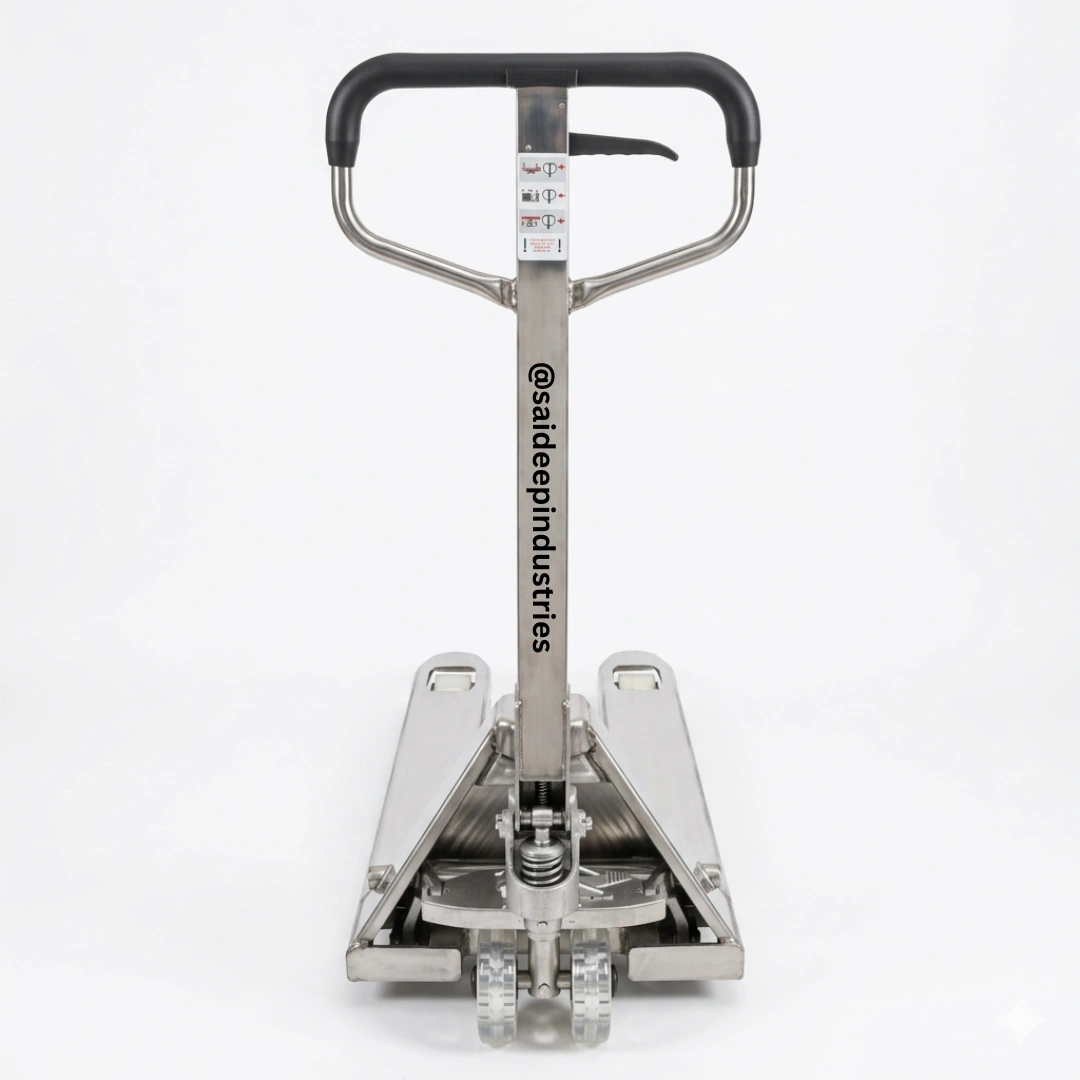

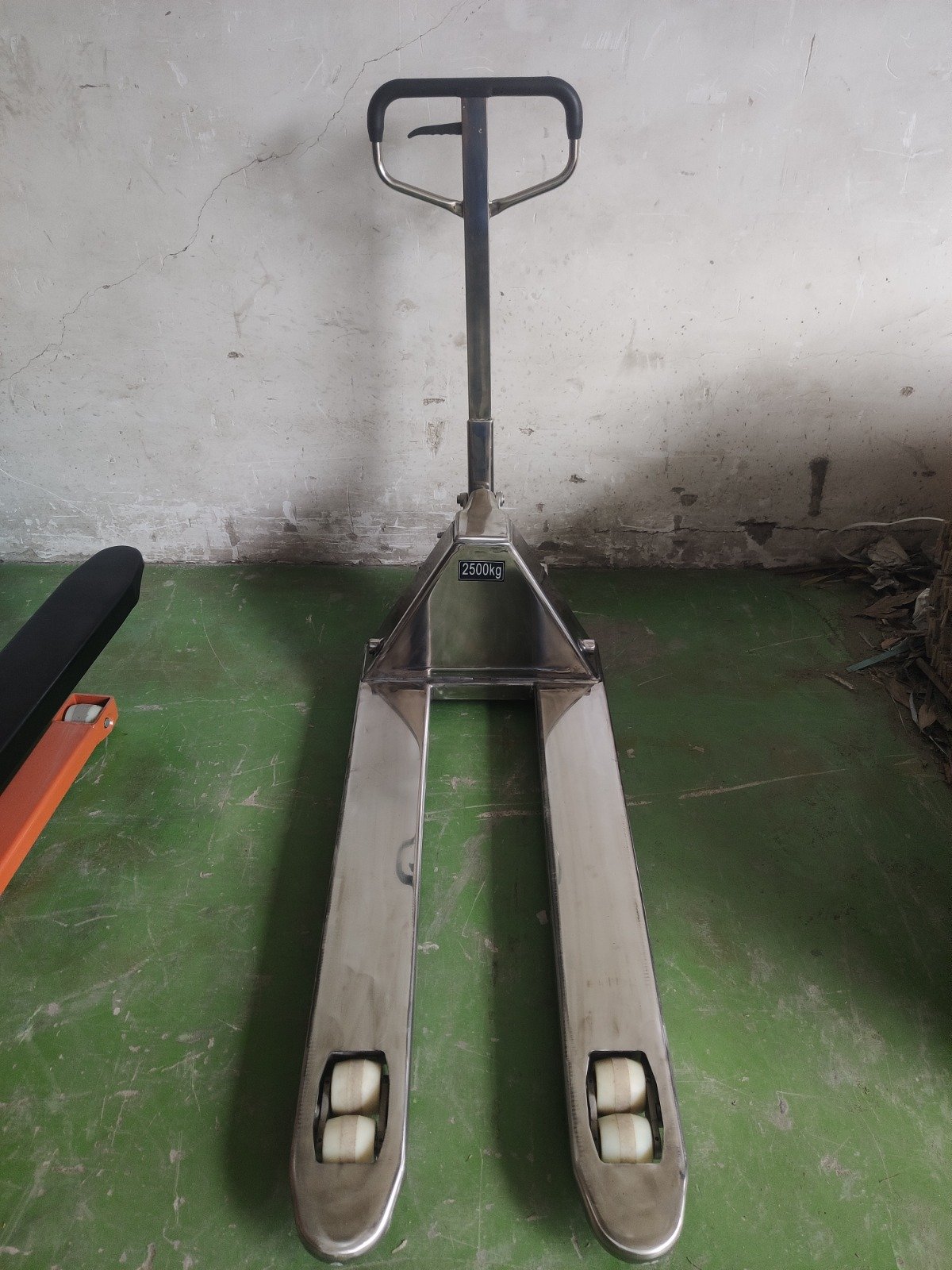

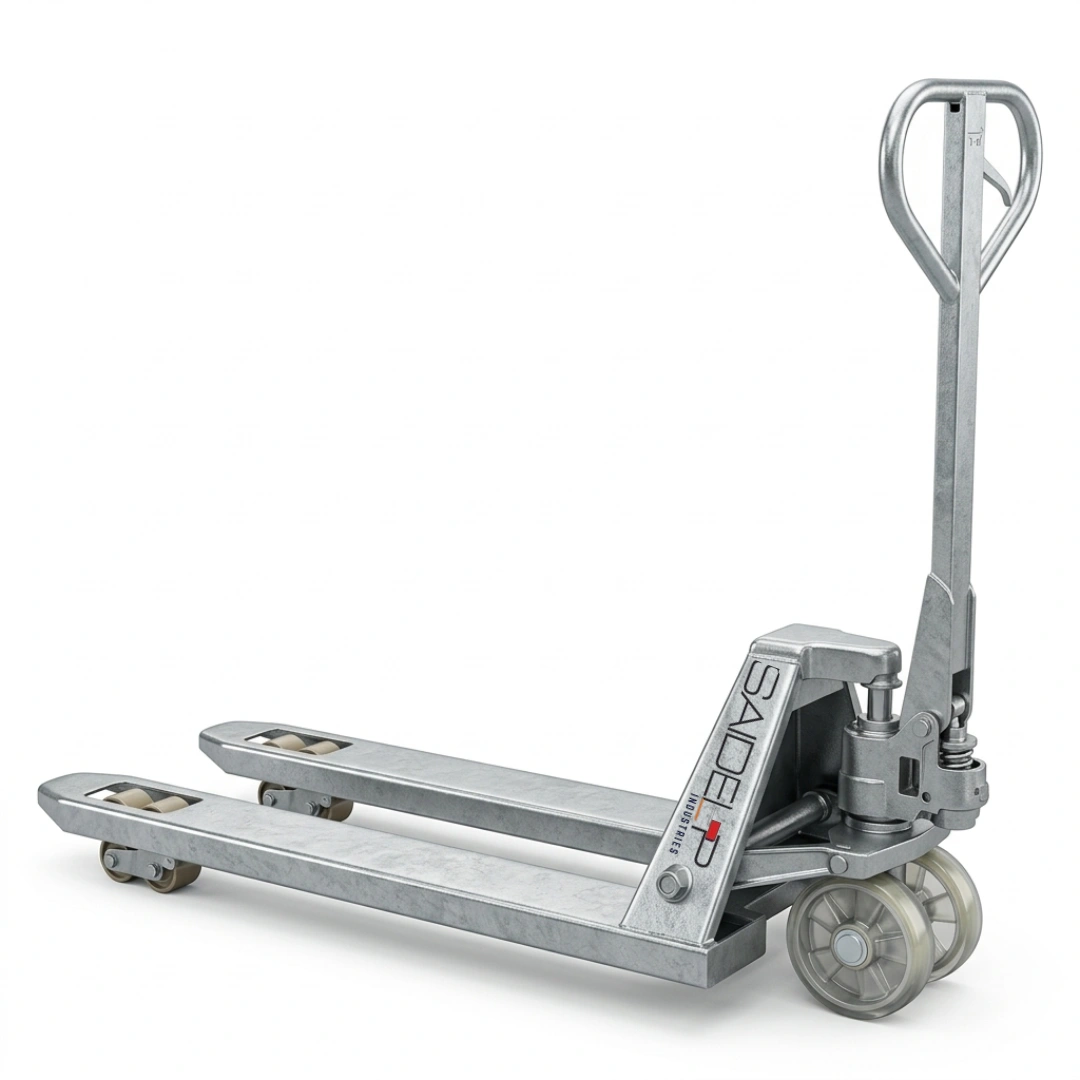

This Hand Pallet Truck features an ergonomically designed handle, ensuring maximum comfort and ease of use even during extended periods of material handling.
- Capacity – 3 to 5 ton
- Structure Weight – 70 to 72kgs
- Fork (mm) – 1150 (L) x 550 (W)
- Turning Radius – 114 Degree
100 in stock
Description
material handling hand pallet truck india – saideep ind.
Pioneer Leader of Hand Pallet Truck & Material Handling Equipment Manufacturer India
enhance after-sales service
Maintenance and AMC will also be available.
| Structure Weight | 70 to 72 kg. |
|---|---|
| Capacity | 3 to 5 Ton |
| LIFT | 90MM / STROKE (200MM / Height) |
| Turning Radius | 114 Degree |
|---|---|
| Fork | 150MM |
| Min. Fork Height | 85 MM |
| Max. Fork Height | 200 MM |
| Fork Length | 1150 MM |
| Fork Width | 550 MM |
| Lower Speed | Continuously Variable |
| Hydraulic Unit | 1 Nos. Vertical Mounted Hyd. EN-8 ground and hard chrome plated piston Hand Operated Pump with Honned Hyd. Cylinder & Hard Chrome Plated Piston Rod. Hyd. Pump Includes ‘Pu’ & Plate Based Teflon Oil Seals With Built In Overload Protection Valve. |
| Wheels | Wheel Material – Nylon 2 Nos. 170 x 50 mm. Size Wheels at Front (Handle) Side & 2 Nos. 80 X 70 mm. Size Load Roller Wheels at Rear Side. |
| Handle | 3 Lever Position Handle (Lift/Lock/Release) |
| Paint | Entire structure shall be powder coated or auto finish painted |
| Qty. 20′ Feet Container (Pcs.) | 180 / 144 |
|---|
Request Call-Back
Additional information
| Weight | 70-72 kg |
|---|---|
| Dimensions | 1150 × 550 × 200 mm |
| Load Capacity | 3000 – 5000 Kgs. |
| Color | Silver – SS – Steel Body |
