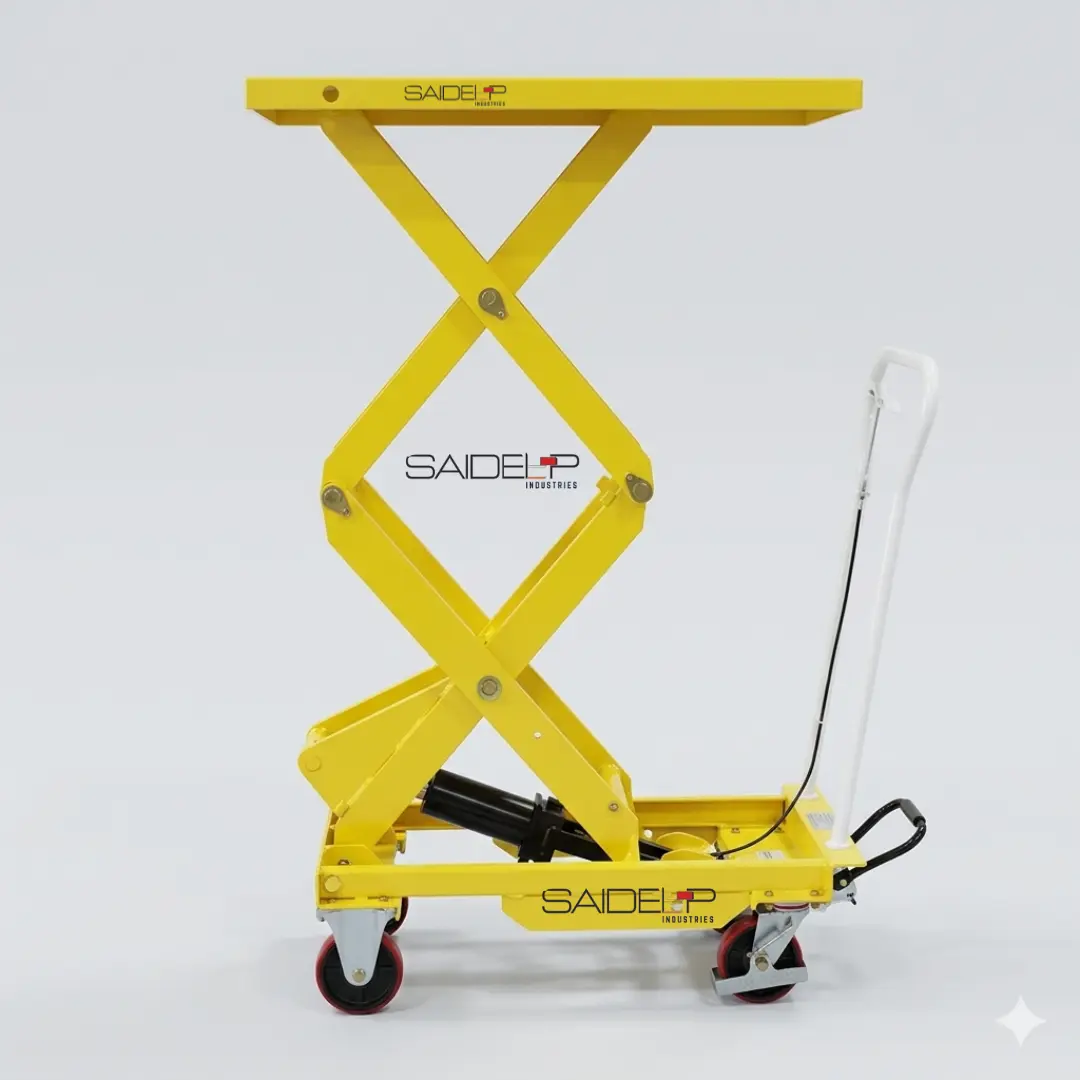

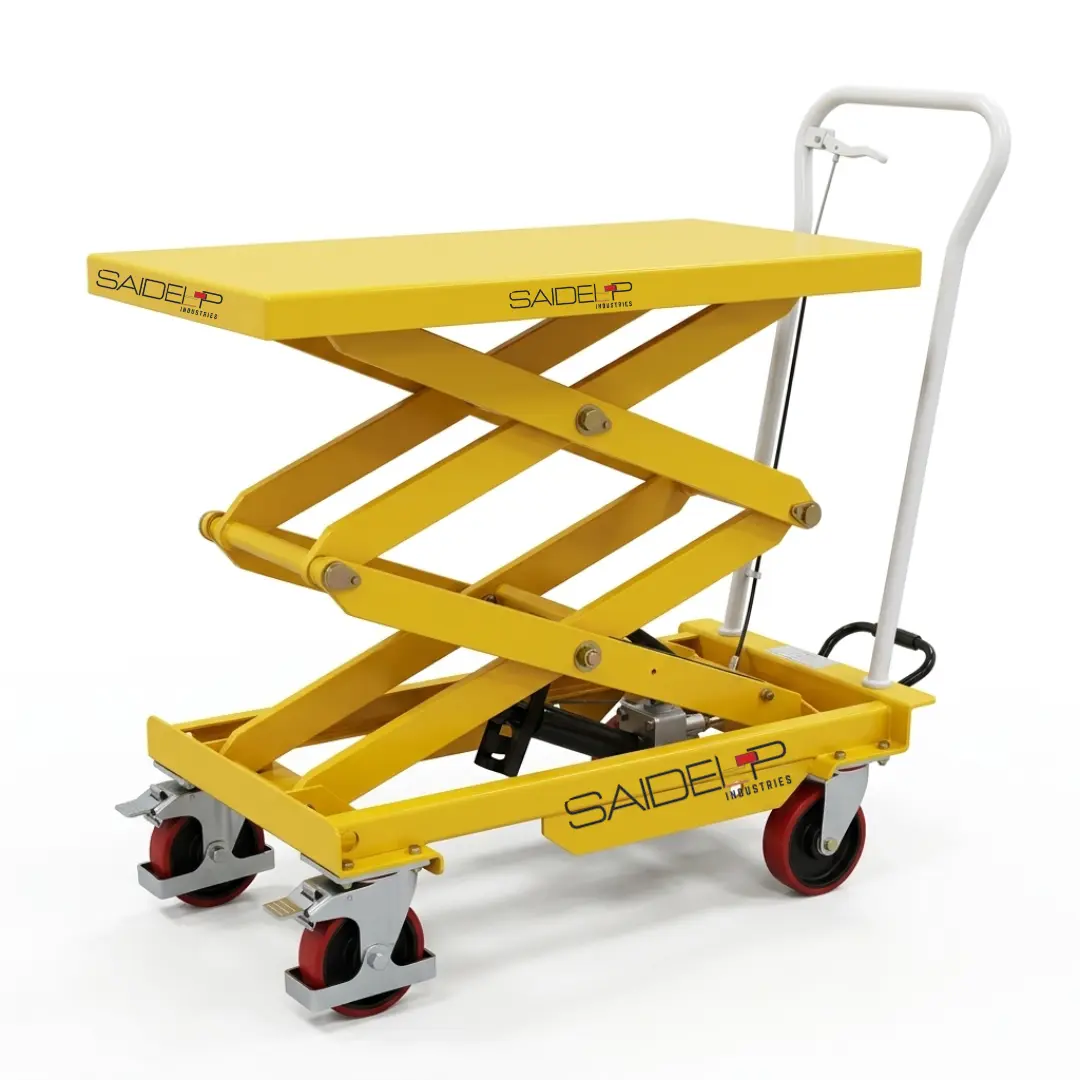

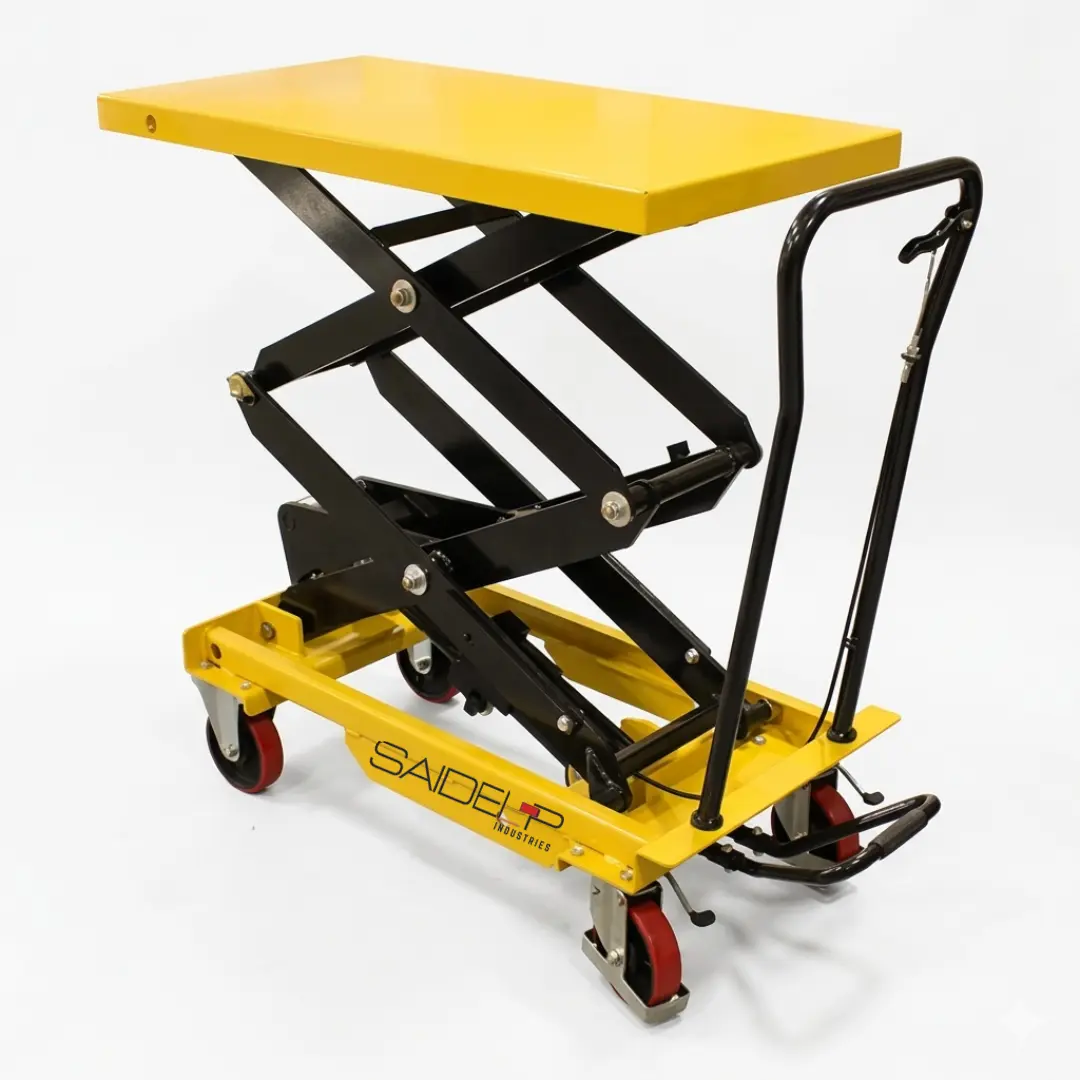

Double Scissor Lift Table – Manual
₹45,000.00
Model No – SI-SLT102
This Hand Pallet Truck features an ergonomically designed handle, ensuring maximum comfort and ease of use even during extended periods of material handling.
- Capacity – 500 Kgs.
- Structure Weight – 150 kgs
- Platfrom size (mm) – 1200 (L) x 610 (W)
- Height – 1500 mm
Description
material handling hand pallet truck india – saideep ind.
Saideep Industries is a trusted Hydraulic Lift Table Manufacturer in India, offering reliable lifting solutions designed to raise and position materials at different working heights. Our double scissor lift tables are built for applications where greater lifting height and stable material positioning are required. With a strong structural design and dependable lifting mechanism, these tables are suitable for warehouses, manufacturing units, workshops, assembly areas, and other industrial environments where safe and efficient vertical material handling is important.
A double scissor lift table provides additional lifting height through its two-stage scissor mechanism, making it suitable for a wide range of material handling and positioning applications. Saideep Industries manufactures lift tables with a focus on stability, durability, smooth operation, and ease of use. These lifting solutions can be used for loading and unloading, production processes, equipment positioning, maintenance, and transferring materials between different working levels. Our lift tables are designed to reduce manual handling effort while providing dependable support for everyday industrial operations.
enhance after-sales service
Maintenance and AMC will also be available.
| Structure Weight | 70 to 72 kg. |
|---|---|
| Capacity | 2.5 Ton |
| LIFT | 90MM / STROKE (200MM / Height) |
| Turning Radius | 114 Degree |
|---|---|
| Fork | 150MM |
| Min. Fork Height | 85 MM |
| Max. Fork Height | 200 MM |
| Fork Length | 1150 MM |
| Fork Width | 550 MM |
| Lower Speed | Continuously Variable |
| Hydraulic Unit | 1 Nos. Vertical Mounted Hyd. EN-8 ground and hard chrome plated piston Hand Operated Pump with Honned Hyd. Cylinder & Hard Chrome Plated Piston Rod. Hyd. Pump Includes ‘Pu’ & Plate Based Teflon Oil Seals With Built In Overload Protection Valve. |
| Wheels | Wheel Material – Nylon 2 Nos. 170 x 50 mm. Size Wheels at Front (Handle) Side & 2 Nos. 80 X 70 mm. Size Load Roller Wheels at Rear Side. |
| Handle | 3 Lever Position Handle (Lift/Lock/Release) |
| Paint | Entire structure shall be powder coated or auto finish painted |
| Qty. 20′ Feet Container (Pcs.) | 180 / 144 |
|---|
Request Call-Back
Additional information
| Weight | 150 kg |
|---|---|
| Dimensions | 1200 × 610 × 1500 mm |
| Load Capacity | 500 Kgs. |
| Color | Rustic Red, Yellow Golden |
