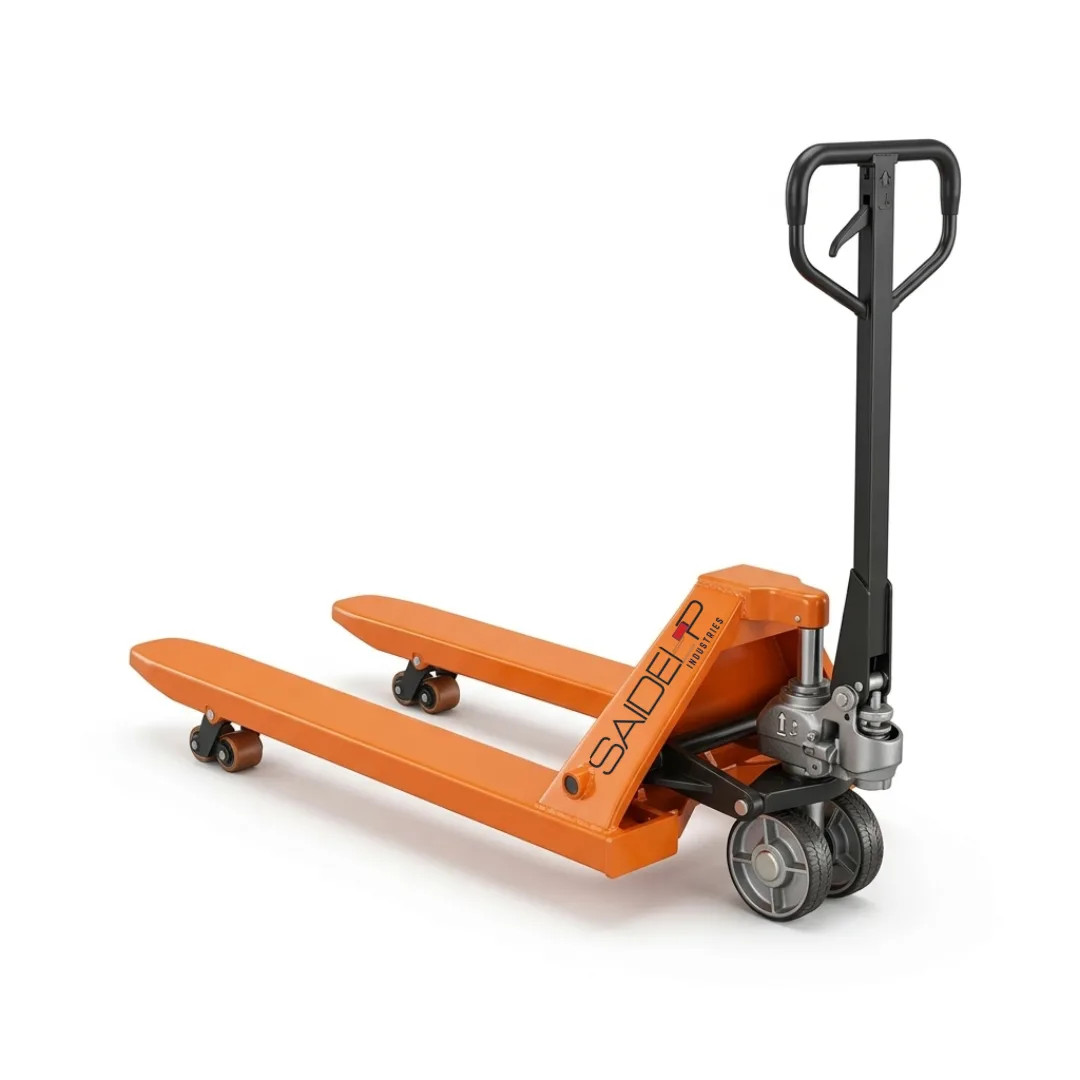

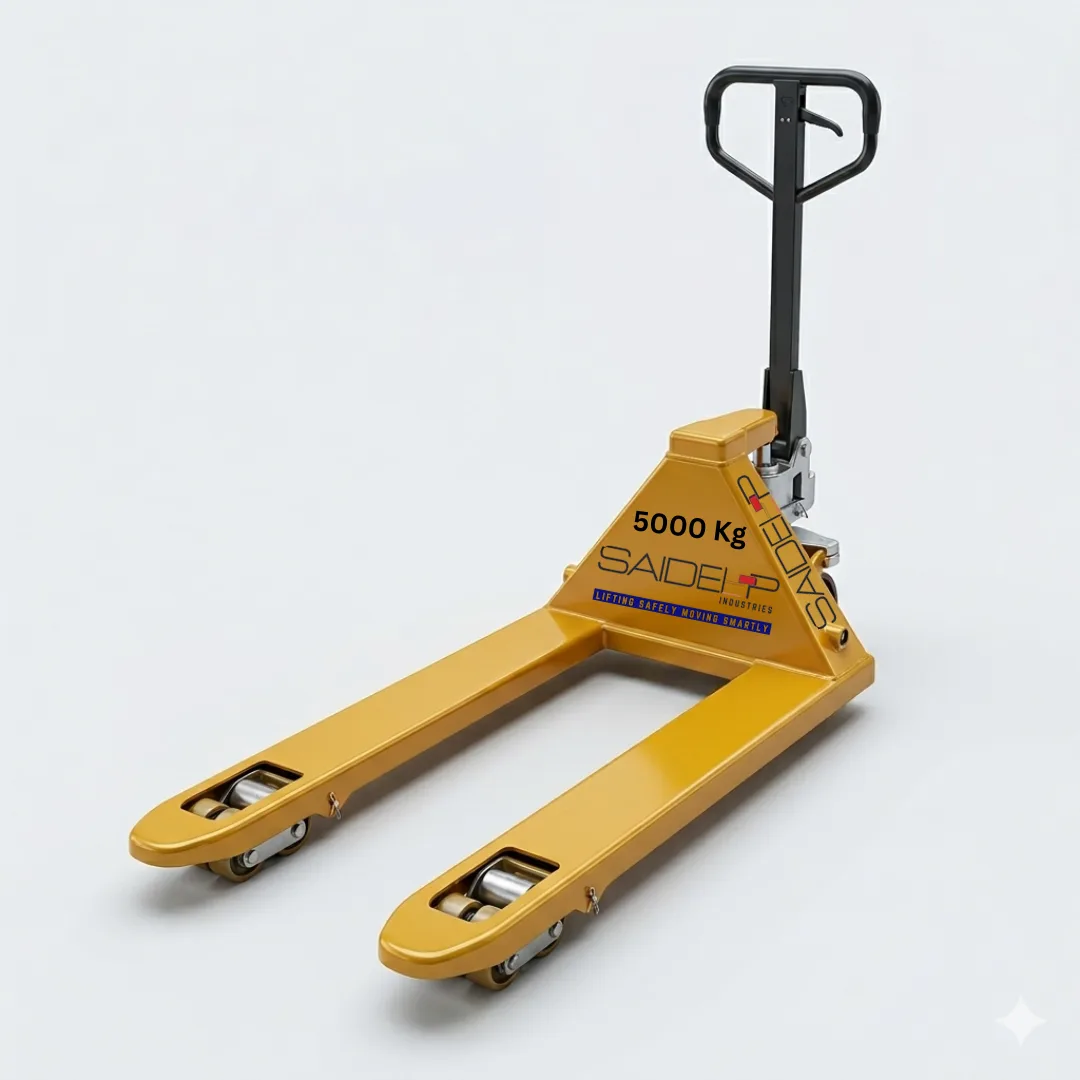

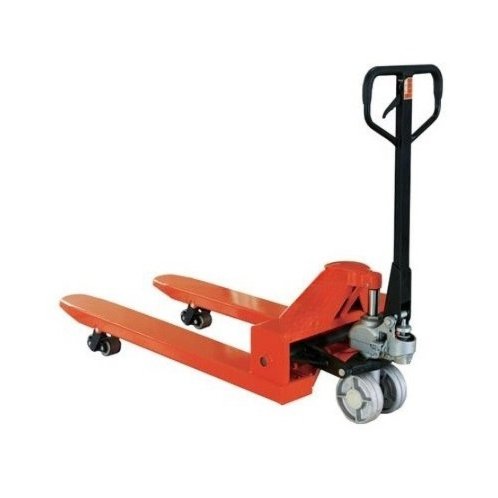

5 Ton Hand Pallet Truck

41,500.00

Model No – SI-HPT103

This Hand Pallet Truck features an ergonomically designed handle, ensuring maximum comfort and ease of use even during extended periods of material handling.

  • Capacity – 3 to 5 ton
  • Structure Weight – Customized
  • Fork (mm) – 1150 (L) x 550 (W)
  • Turning Radius – 114 Degree

Description

material handling hand pallet truck india – saideep ind.

Saideep Industries is a trusted 5 Ton Hand Pallet Truck Manufacturer in India, offering heavy-duty material handling solutions for industries that regularly move large and heavy palletized loads. Our 5 ton hand pallet truck is designed for demanding warehouse, manufacturing, logistics, and industrial applications where strength, stability, and smooth handling are essential. With a robust structure, ergonomic three-position handle, reliable hydraulic lifting system, and heavy-duty wheels with double ball bearings, it provides convenient operation and easy movement even when handling loads of up to 5 tons.

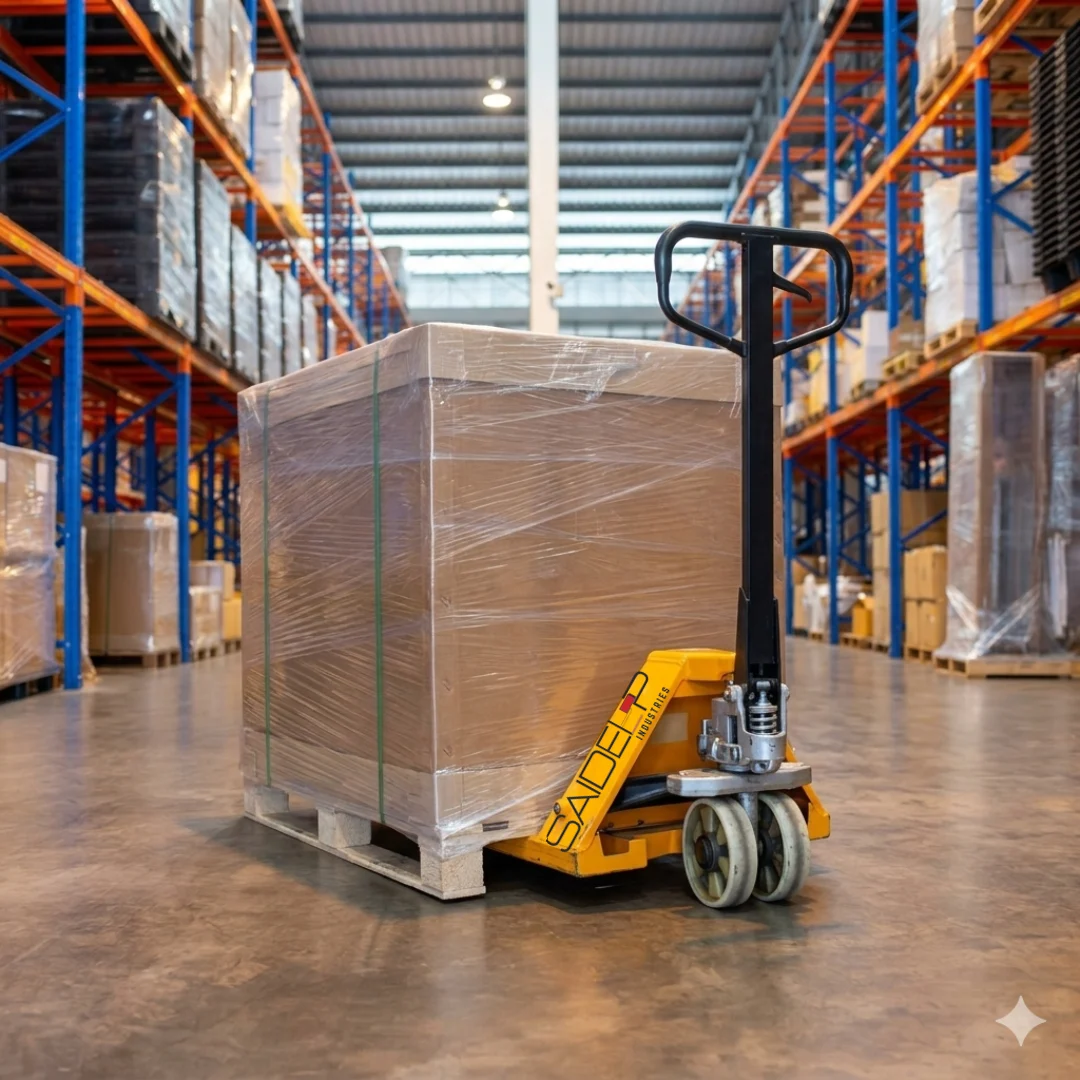

This Heavy Duty Hand Pallet Truck is engineered for dependable performance during regular industrial material handling operations. The hydraulic unit features an overload protection valve, while the 1150 mm long and 550 mm wide forks provide stable support for palletized goods. Its durable construction and controlled lifting mechanism make it suitable for warehouses, production facilities, distribution centers, and other workplaces where heavy materials need to be transported safely over short distances. Saideep Industries focuses on providing reliable material handling equipment that combines practical design, durability, and efficient operation for demanding industrial requirements.

enhance after-sales service

Maintenance and AMC will also be available.

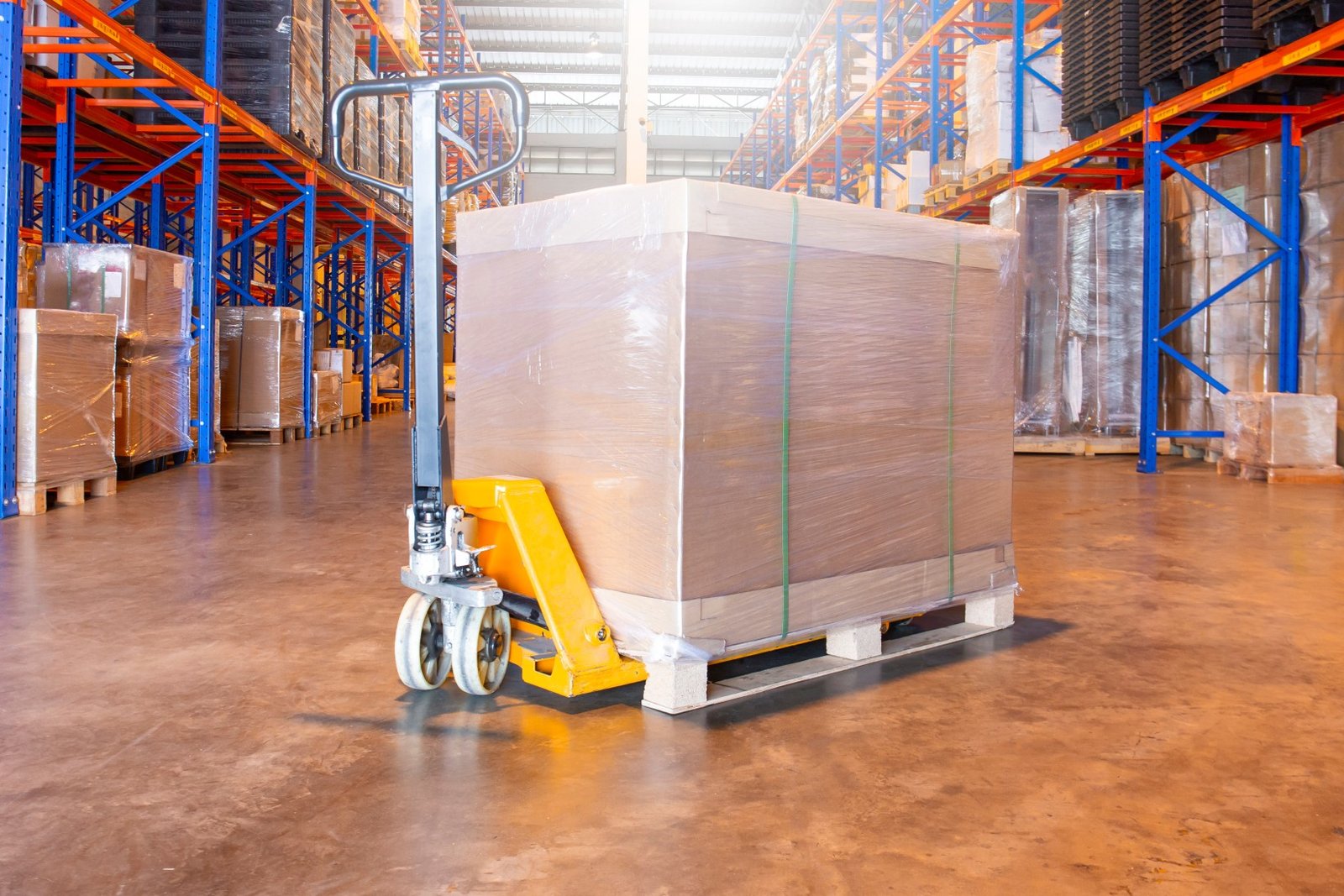

Hand_Pallet_TruckGrd

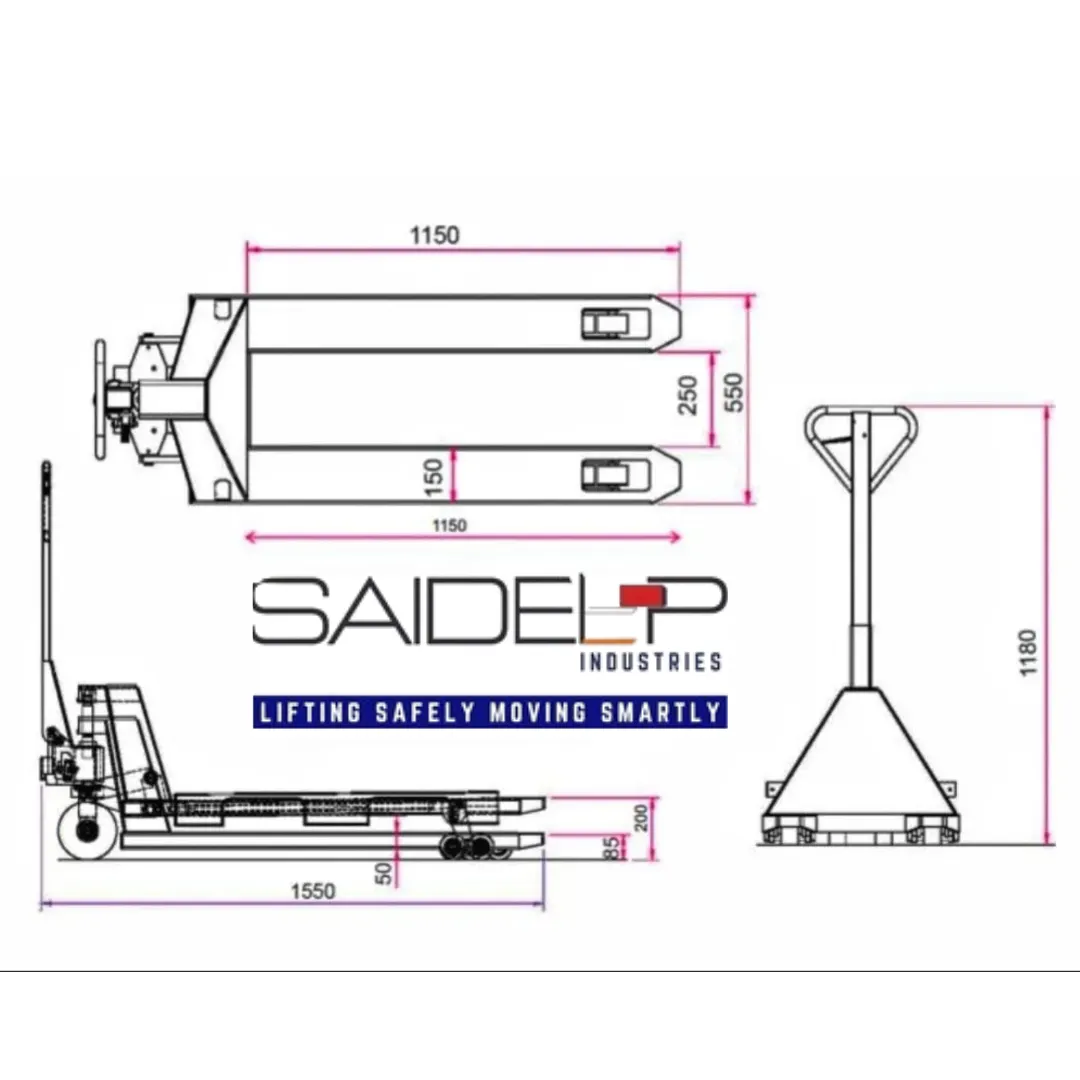

Structure Weight70 to 72 kg.
Capacity3 to 5 Ton
LIFT 90MM / STROKE (200MM / Height)
Turning Radius114 Degree
Fork150MM
Min. Fork Height85 MM
Max. Fork Height200 MM
Fork Length1150 MM
Fork Width550 MM
Lower SpeedContinuously Variable
Hydraulic Unit1 Nos. Vertical Mounted Hyd. EN-8 ground and hard chrome plated piston Hand Operated Pump with Honned Hyd. Cylinder & Hard Chrome Plated Piston Rod. Hyd. Pump Includes ‘Pu’ & Plate Based
Teflon Oil Seals With Built In Overload Protection Valve.

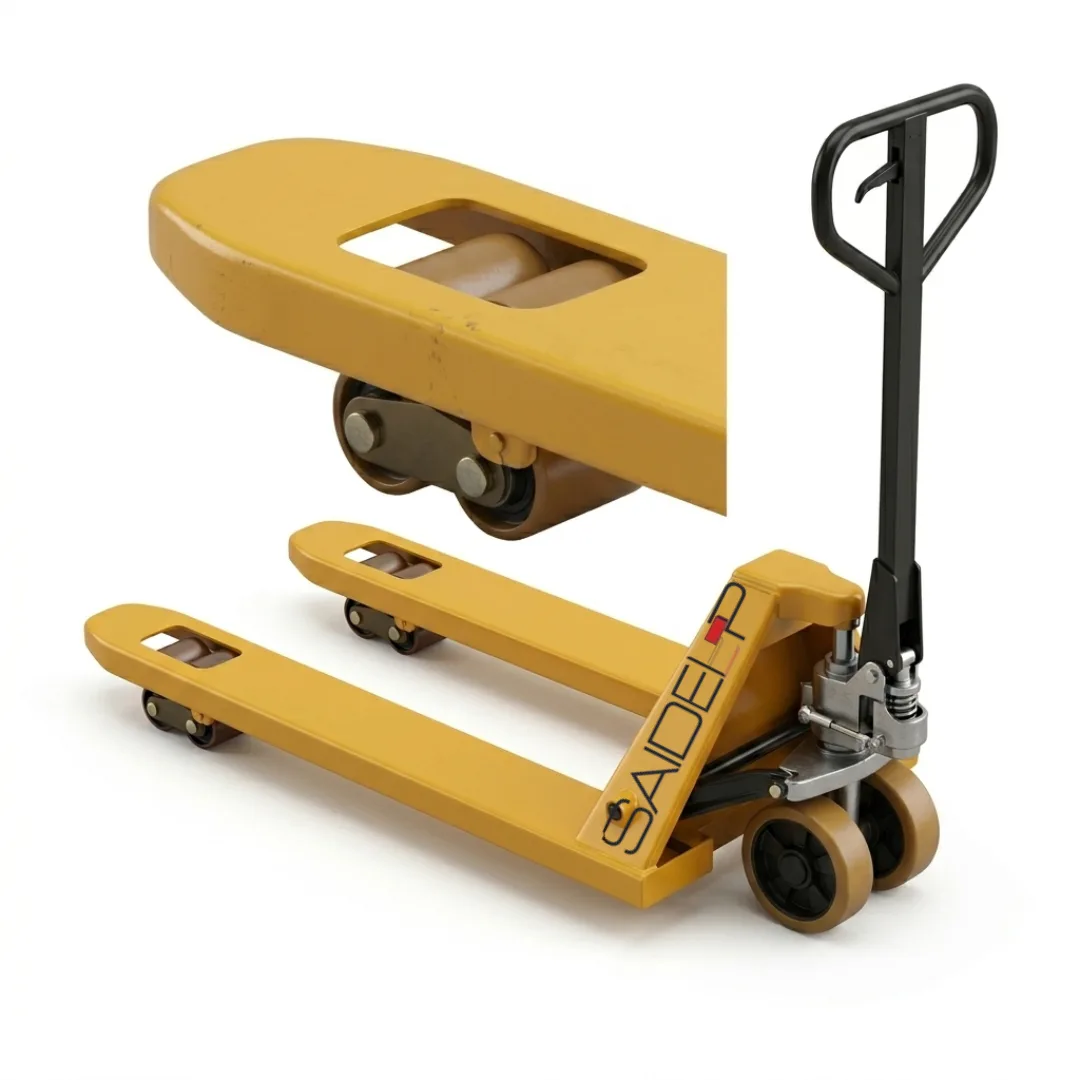

Wheels

Wheel Material – Nylon

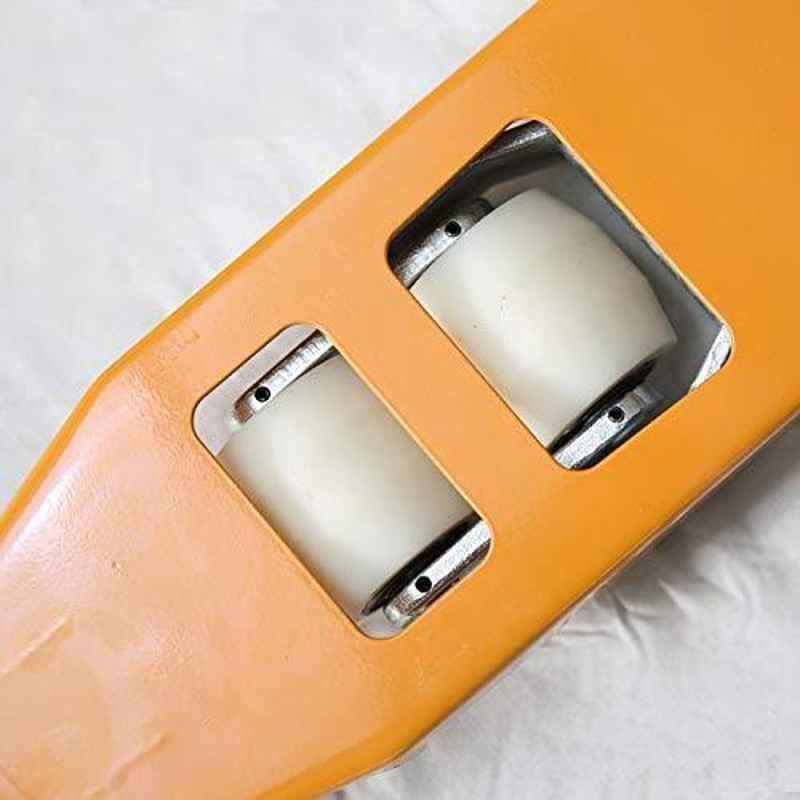

2 Nos. 170 x 50 mm. Size Wheels at Front (Handle) Side & 2 Nos. 80 X 70 mm. Size Load Roller Wheels at Rear Side.
All Wheels – Heavy Duty Red PU Wheels – Contains Double Ball Bearings For Easy Movement.

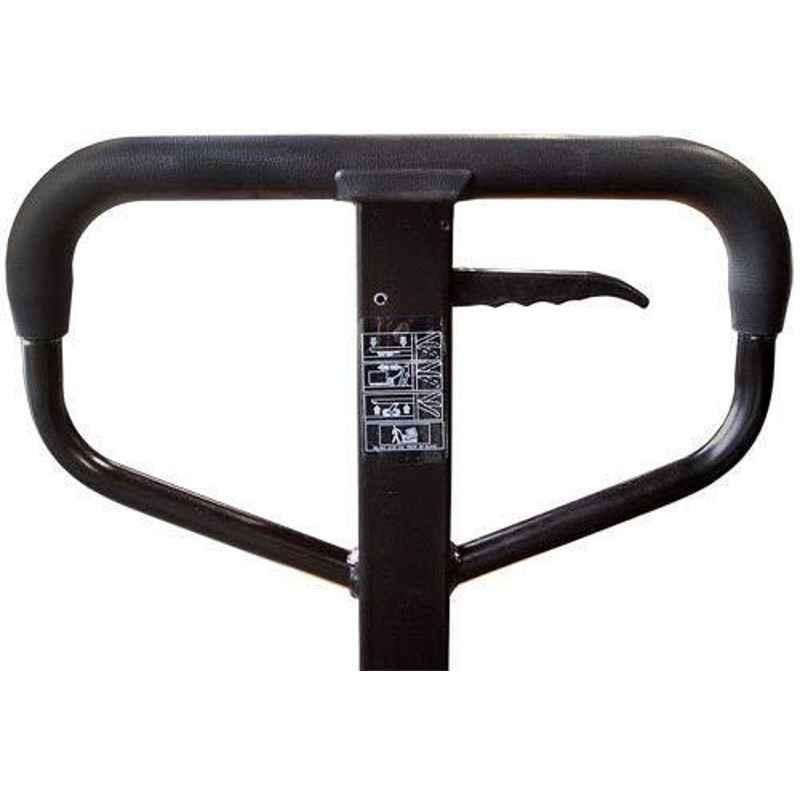

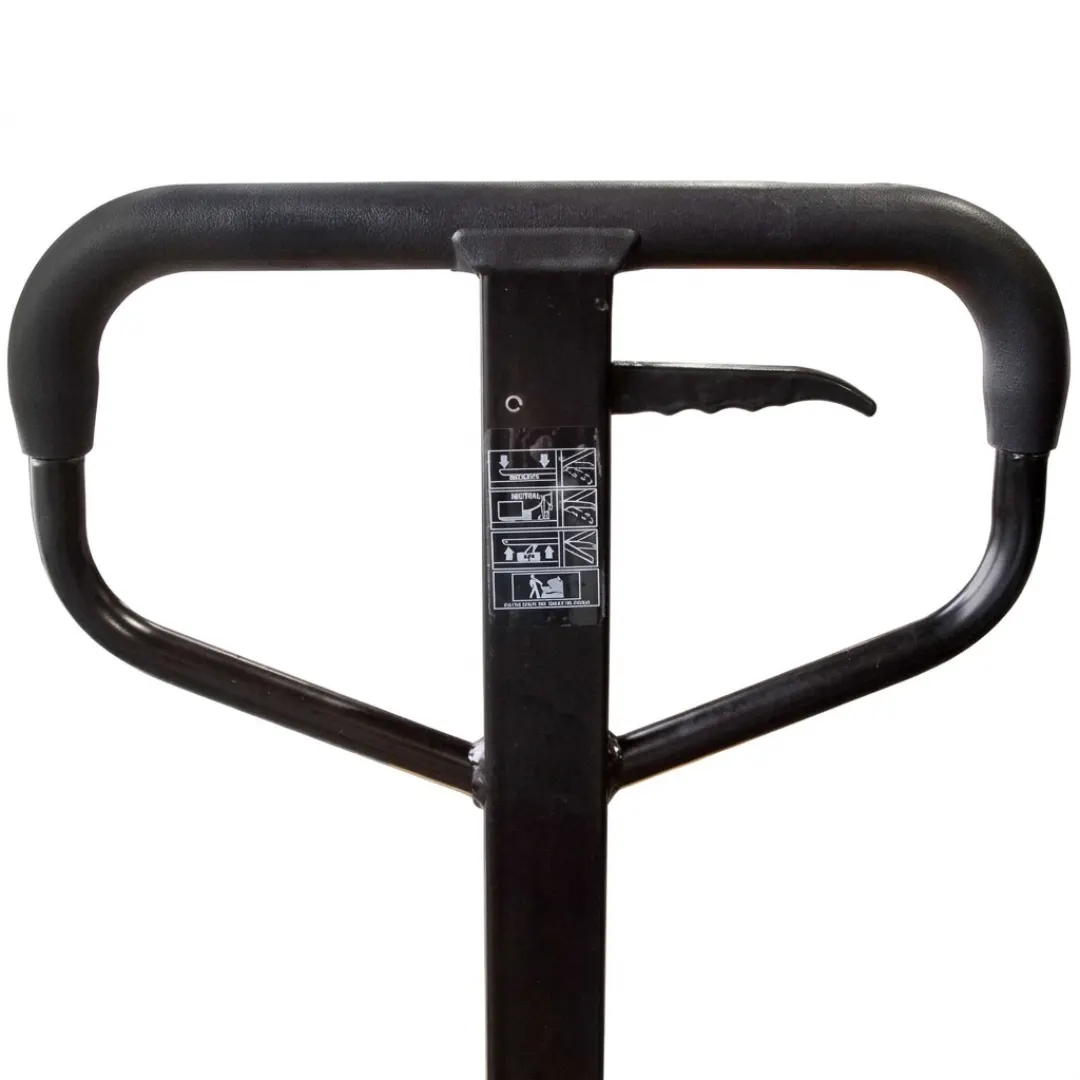

Handle3 Lever Position Handle (Lift/Lock/Release)
PaintEntire structure shall be powder coated or auto finish painted
Qty. 20′ Feet Container (Pcs.)180 / 144

Request Call-Back

Additional information

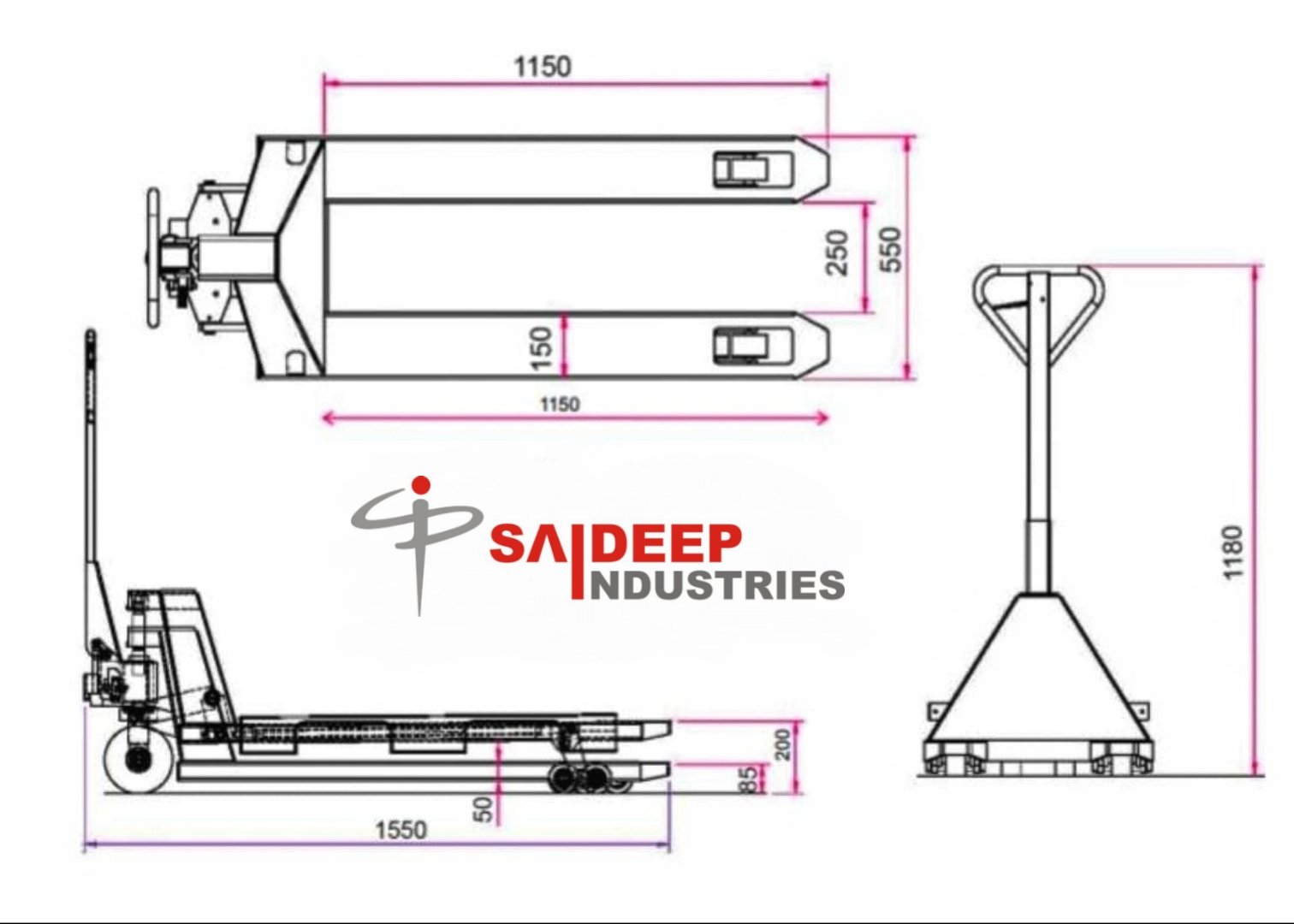

Dimensions 1150 × 550 × 200 mm
Color

Golden Yellow, Rustic Red

Load Capacity

3000 – 5000 Kgs.
