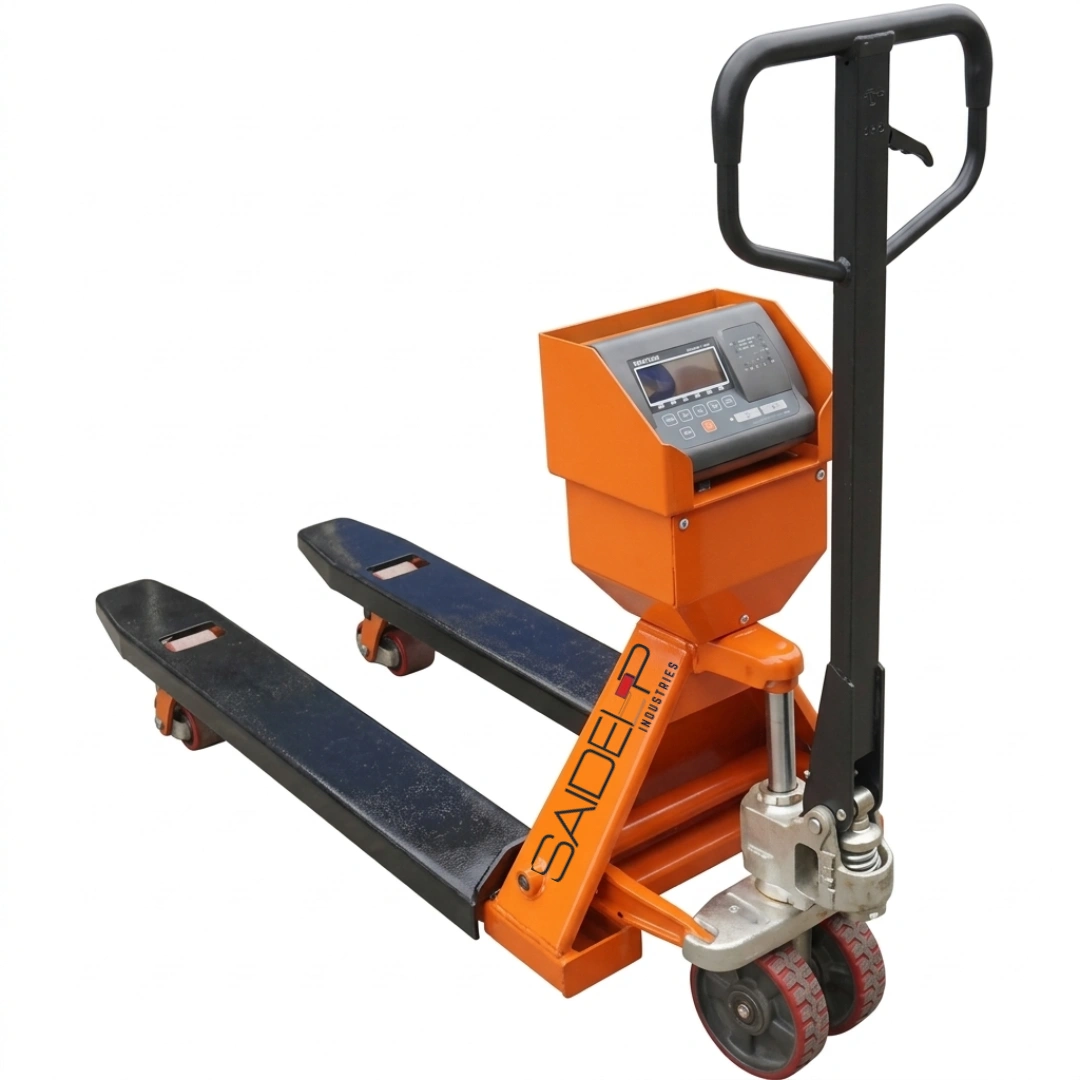

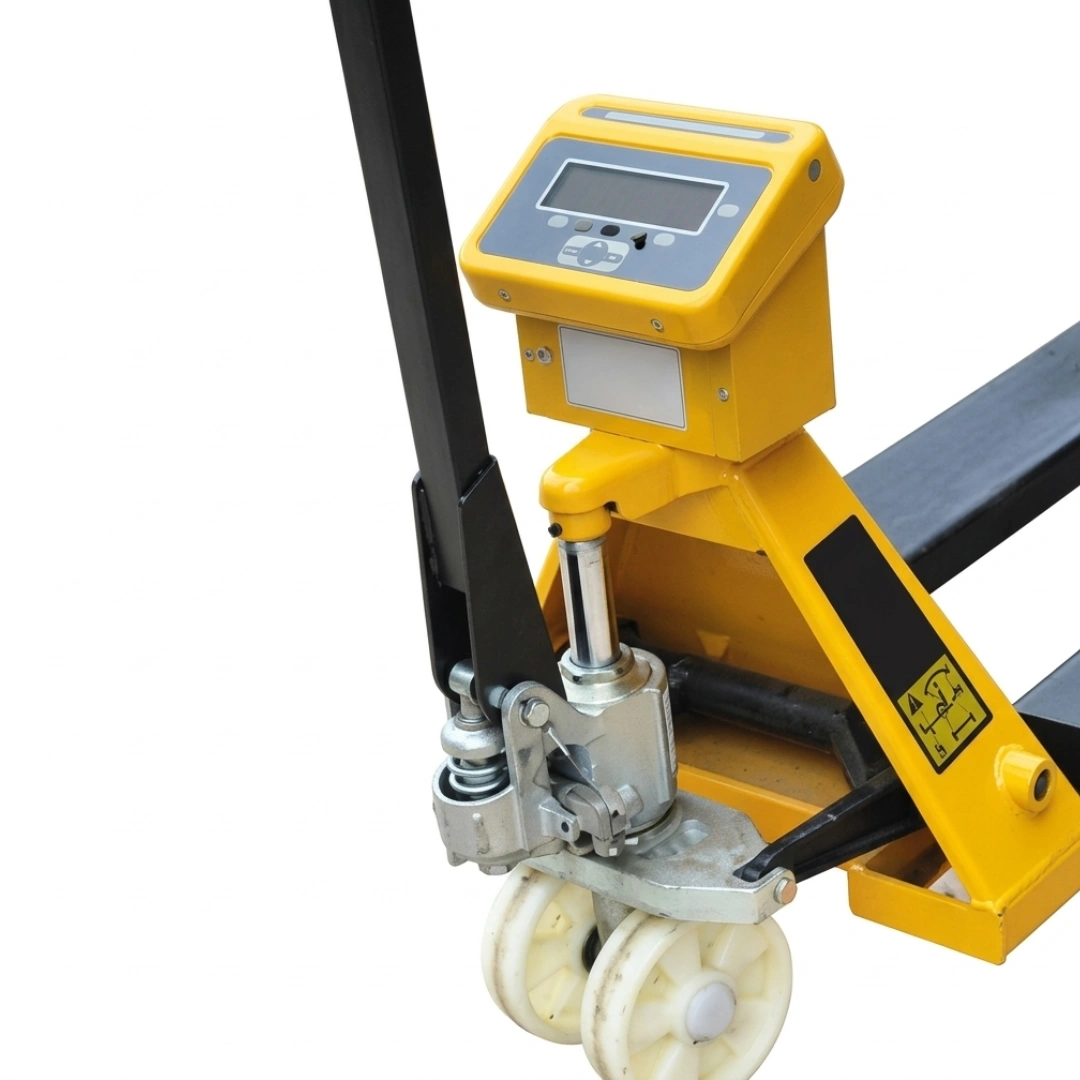

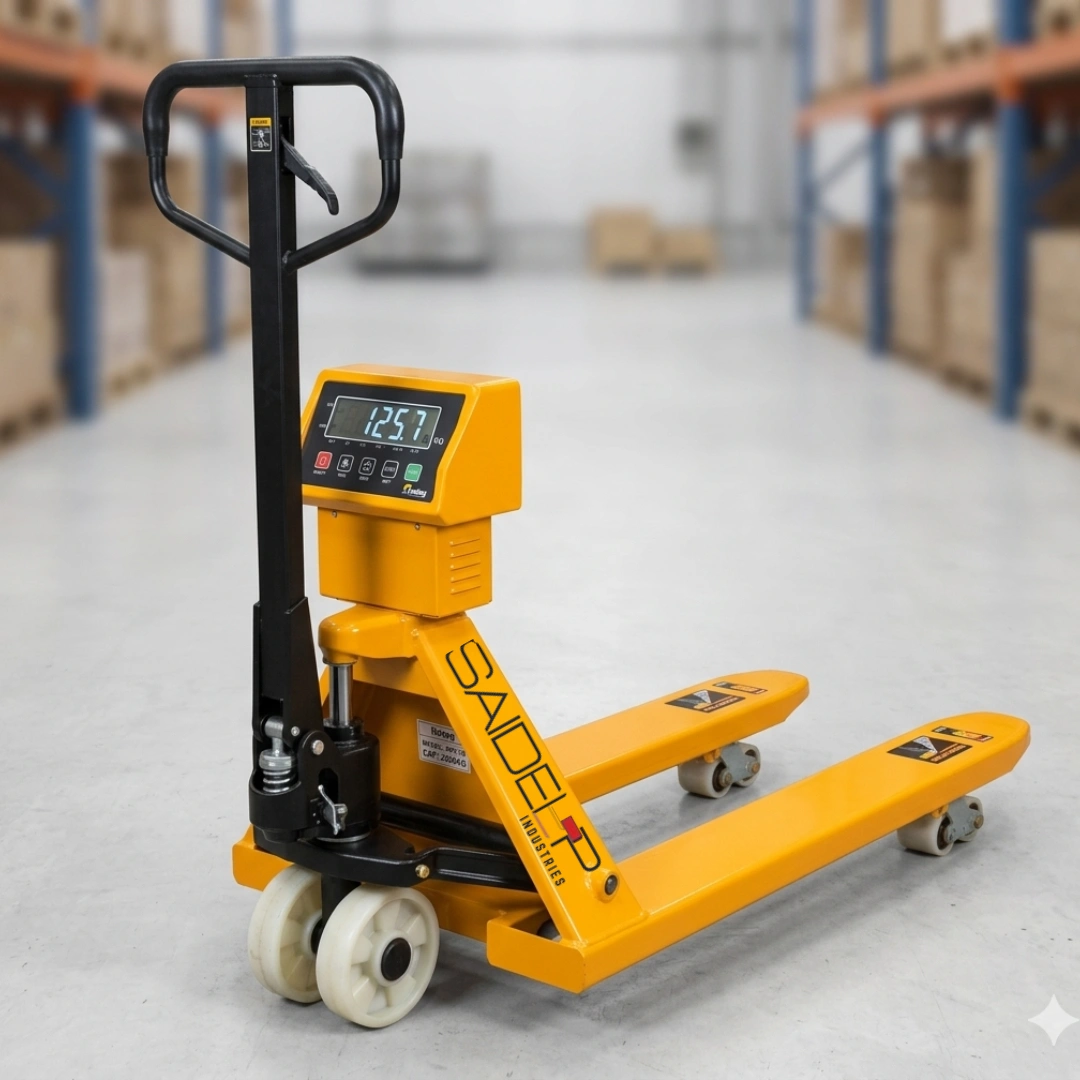

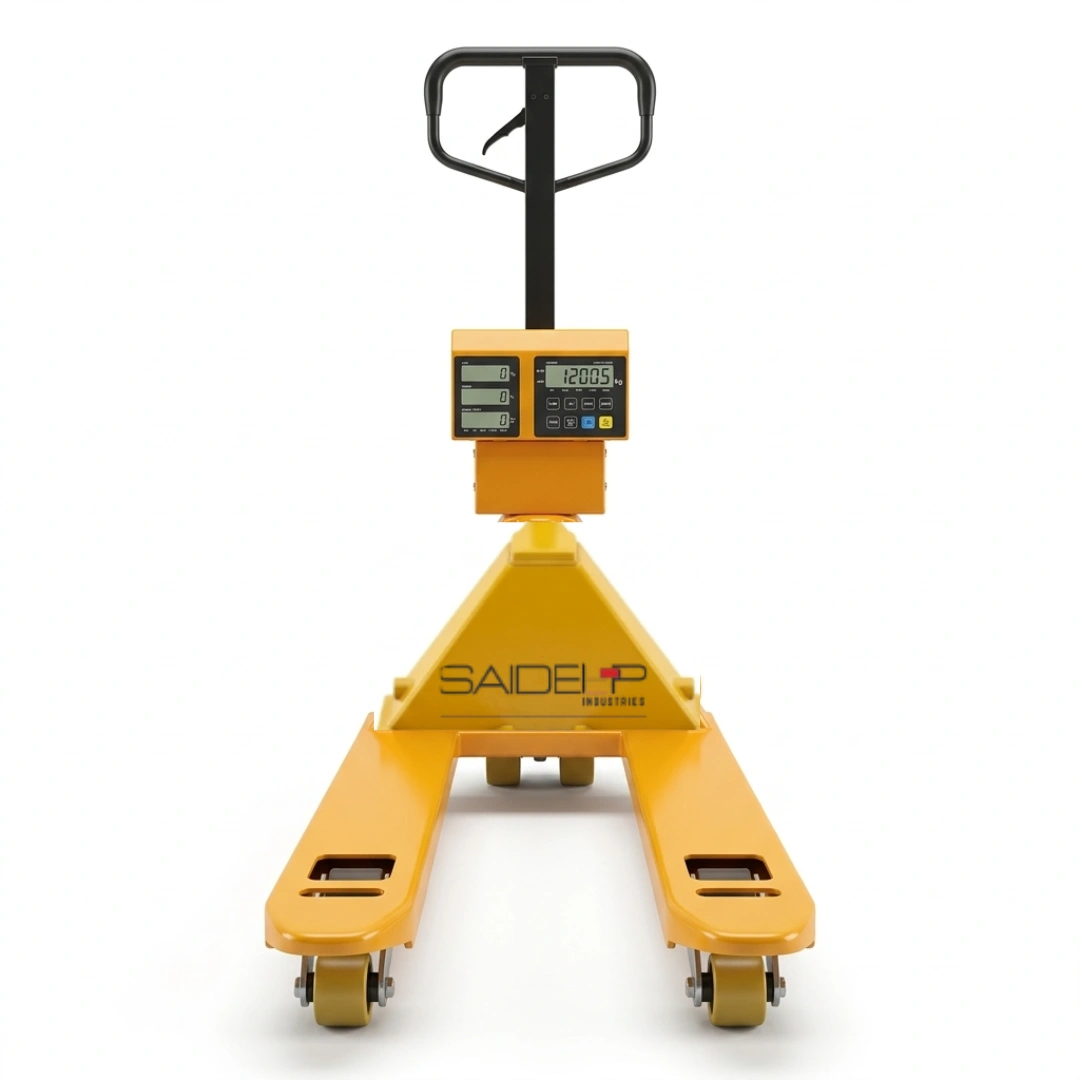

Weight Scale Pallet Truck

Weight Scale Pallet Truck
Weight Scale Pallet Truck - Image 2

Weight Scale Pallet Truck

₹42,000.00

Model No – SI-HPT105

Weight Scale Pallet Truck provides with the structure of made from Heavy-Duty M.S. Sheet Section with Heavy-Duty Lifting Levers & Tie-Rod Plate thickness 4mm.

  • Capacity – 0.5 ton – 2 ton
  • Structure Weight – 73 to 90kgs
  • Fork (mm) – 1150 (L) x 550 (W)
  • Handle – Designed For Best Maneuverability & Made Of M.S. Pipe

100 in stock

SKU: 196 Category: Tags: , , ,

Description

warehouse equipment – weight scale pallet truck india – saideep ind.

Saideep provides Weight Scale Pallet Truck in various types of industry such as Automotive, Packaging, Ceramics Industry, FMCG Warehouses etc..

WEIGHT SCALE PALLET TRUCK - ORDER FOR PACKAGING INDUSTRY WITH AMC

Saideep Industries delivered Weight Scale Pallet Truck Products (22 Nos.) to Packaging Industry on Feb 2023 with 5 Years AMC Contract.

Structure Weight73-90 kg.
Capacity500 Kgs. –  2 Ton
LIFT / MAx Lift 90MM / STROKE (200MM / Height)
Turning Radius114 Degree
Fork150 MM
Min. Fork Height90 MM
Max. Fork Height200 MM
Fork Length1150 MM
Fork Width550 MM
weight scale range500 Gms. – To – 1Kgs.
StructureWill Be Made From Heavy-Duty M.S. Sheet Section with Heavy-Duty Lifting Levers & Tie-Rod Plate thickness 4 mm.
Hydraulic Unit1 Nos. Vertical Mounted Hyd. EN-8 ground and hard chrome plated piston Hand Operated Pump with Honned Hyd. Cylinder & Hard Chrome Plated Piston Rod. Hyd. Pump Includes ‘Pu’ & Plate Based
Teflon Oil Seals With Built In Overload Protection Valve.
Wheels

Wheel Material – PU

2 Nos. 170 x 50 mm. Size Wheels at Front (Handle) Side & 2 Nos. 80 X 70 mm. Size Load Roller Wheels at Rear Side.
All Wheels Contains Double Ball Bearings For Easy Movement.

STEERING WHEEL DIAMETER170 x 50 MM PU
HandleDesigned For Best Maneuverability & Made Of M.S. Pipe
PaintEntire structure shall be powder coated or auto finish painted
Qty. 20′ Feet Container (Pcs.)180 / 144

Request Call-Back

+91-8735984066

Additional information

Weight 73-90 kg
Dimensions 1150 × 550 mm
Color

Golden Yellow, Fanta Orange
Production Capacity

500 Kgs – 2,000 Kgs
