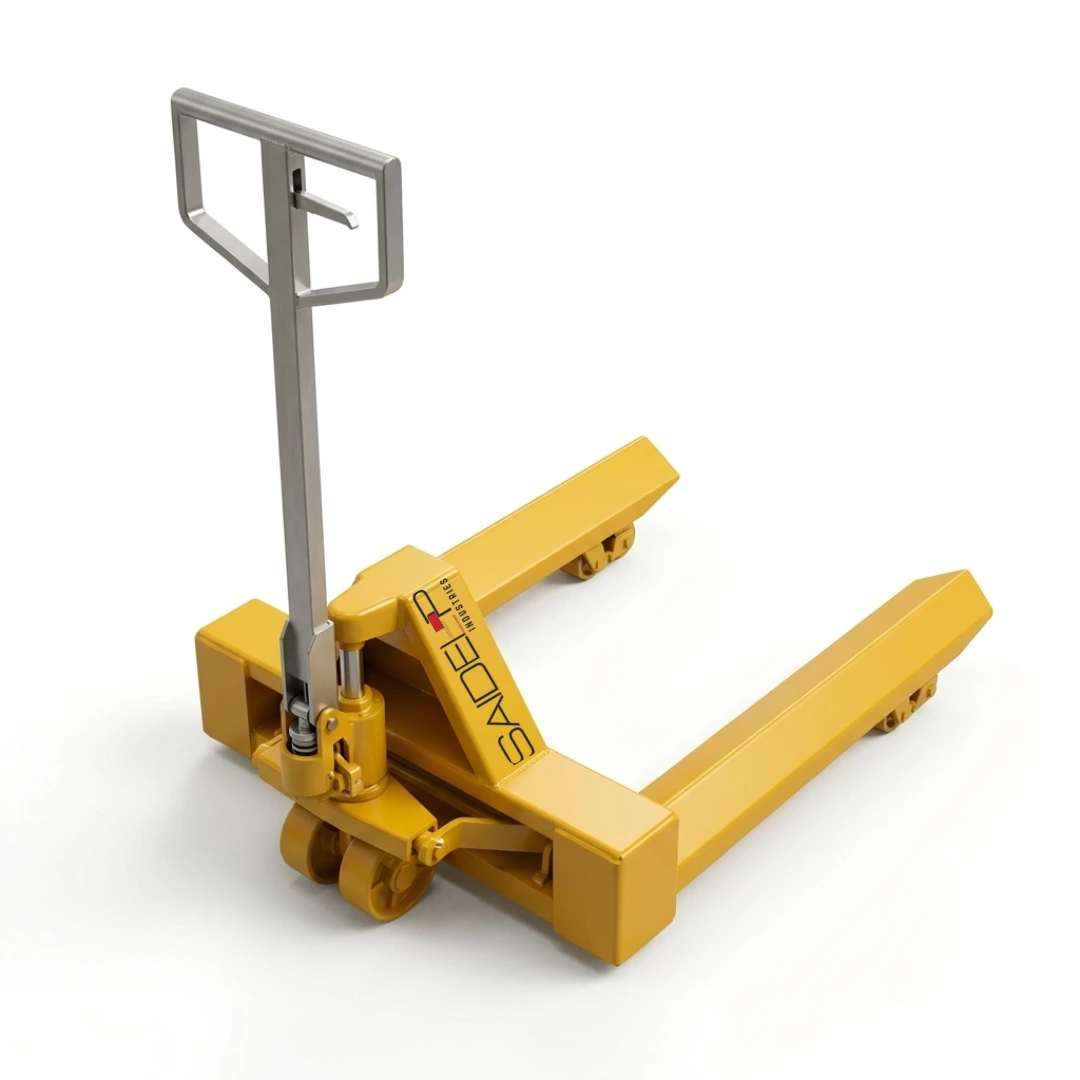

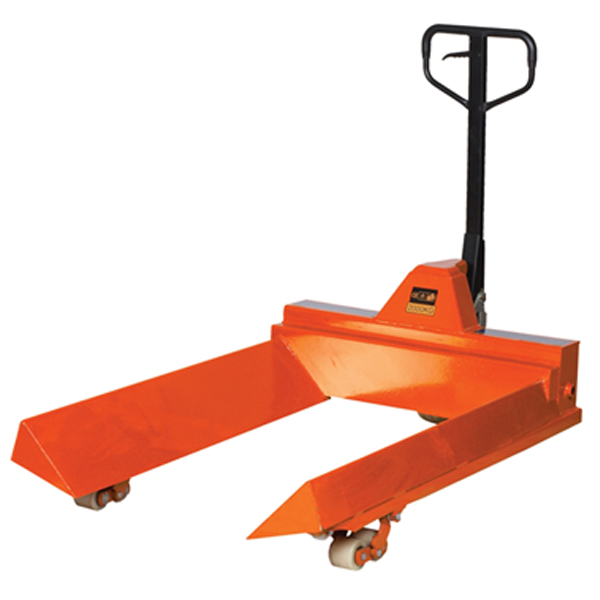

Reel Pallet Truck
₹35,000.00
Model No – SI-HPT104

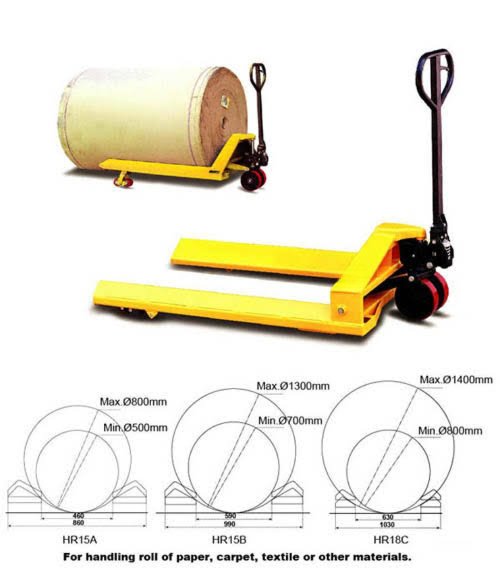

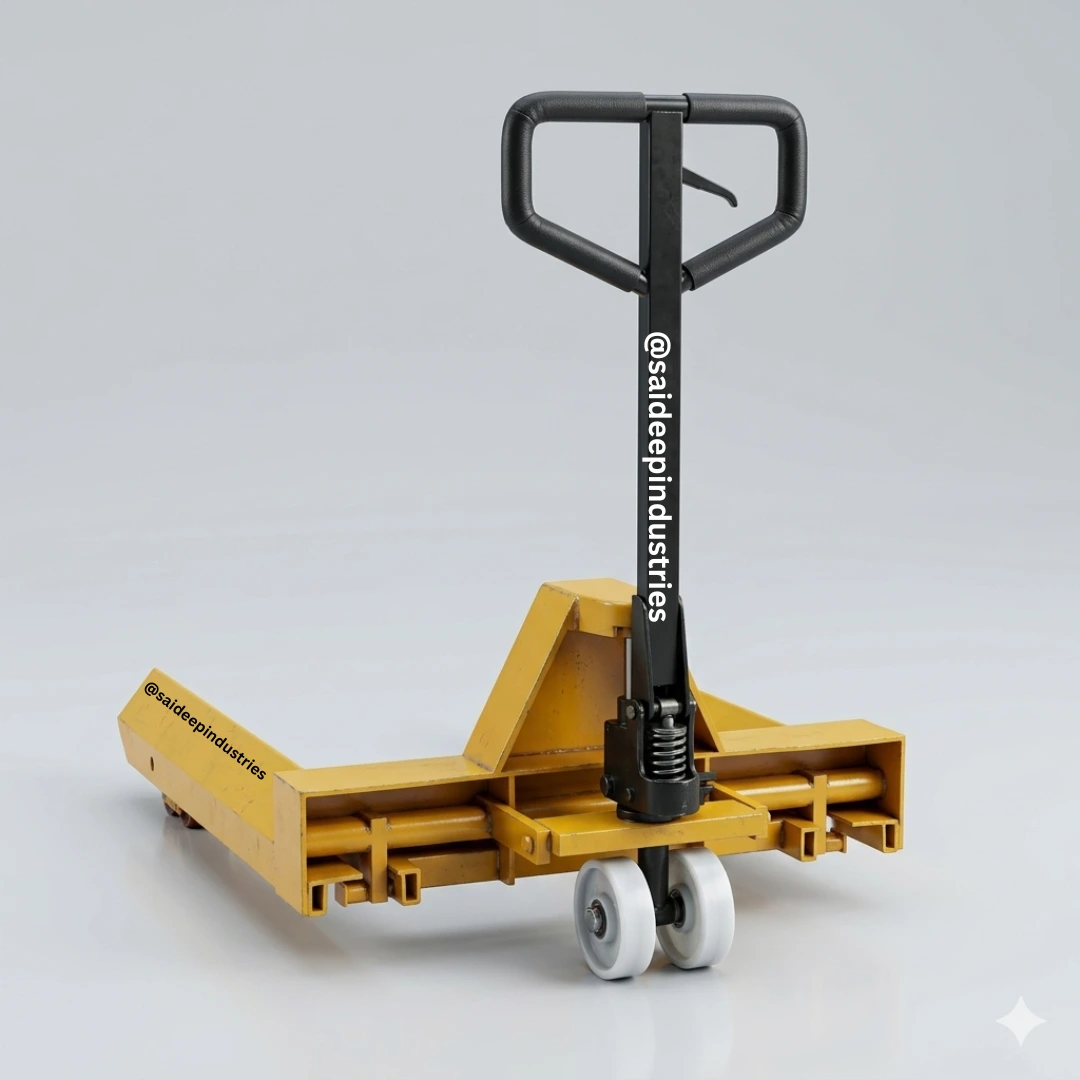

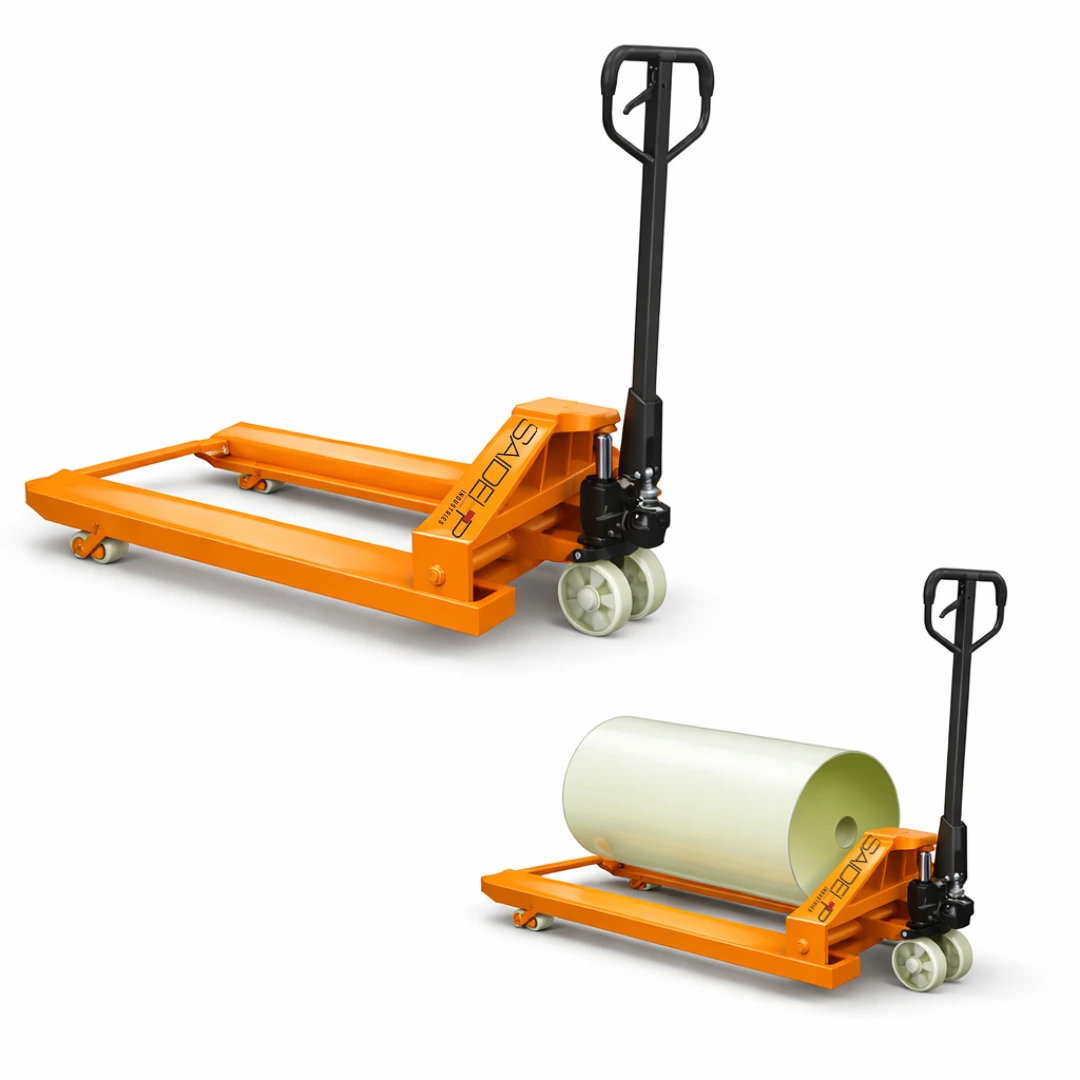

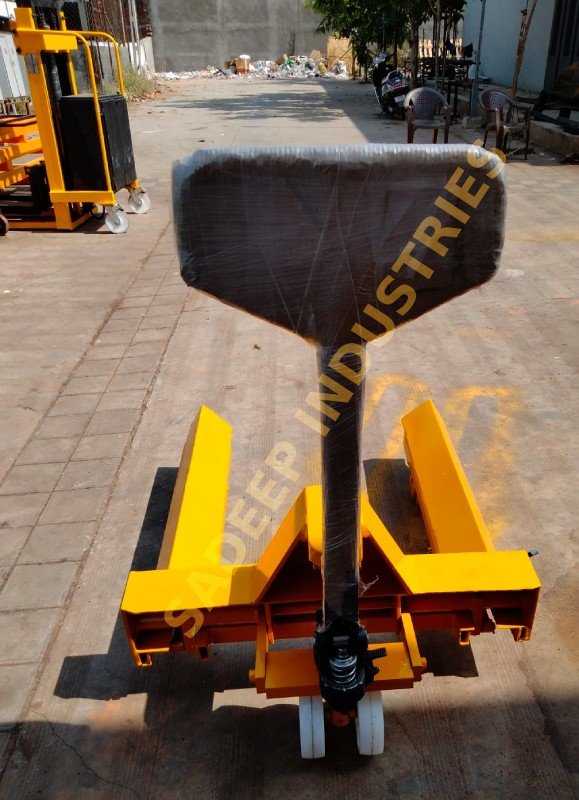

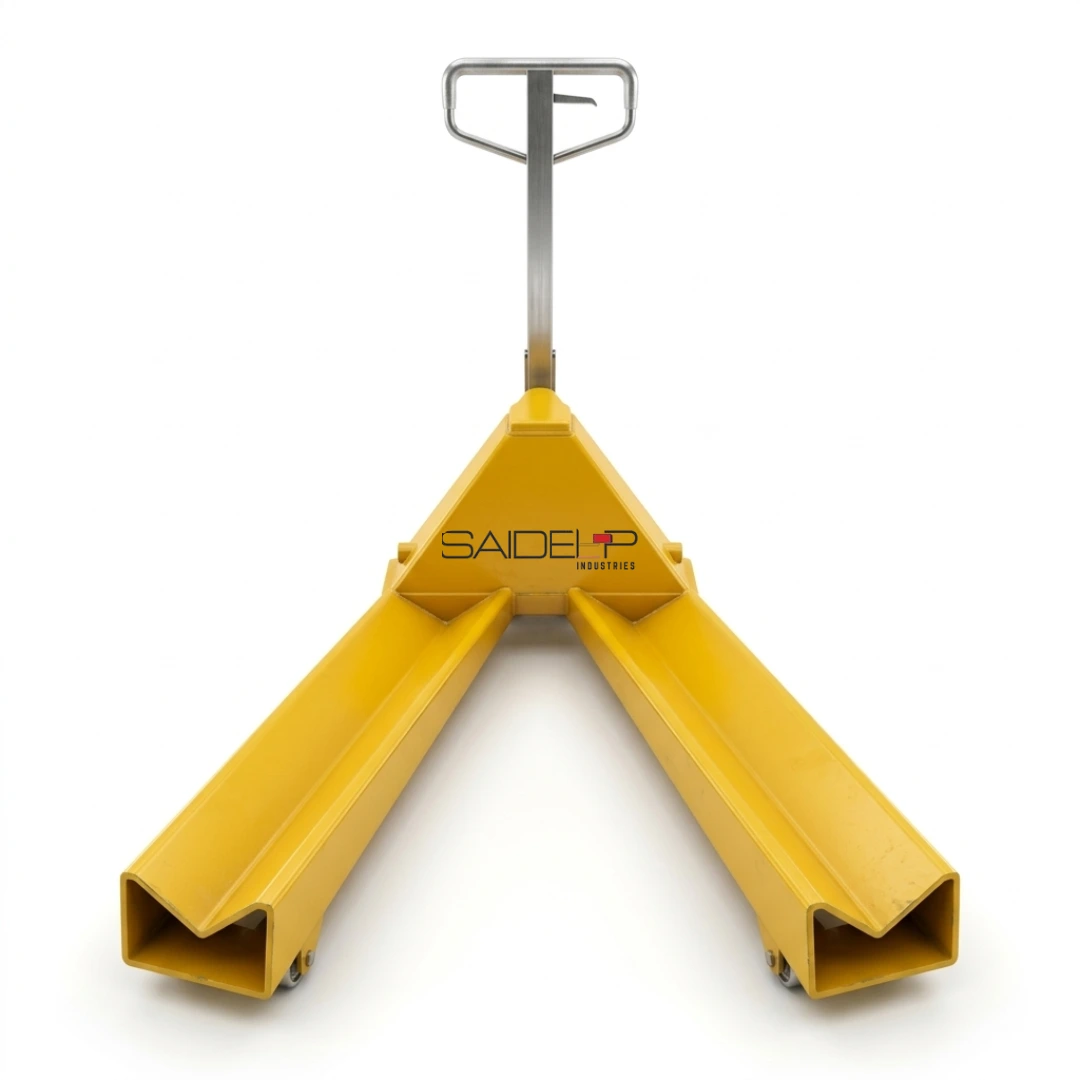

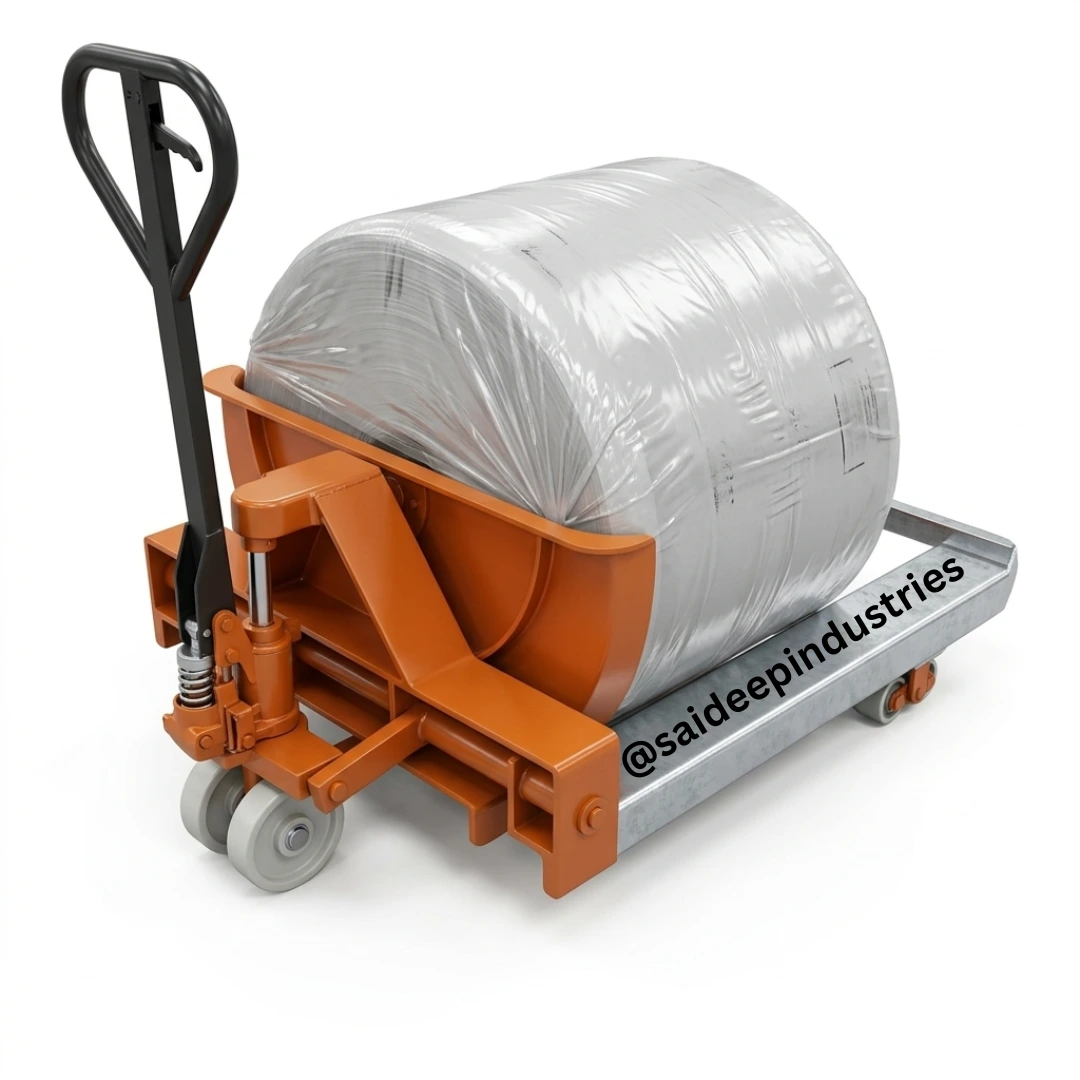

Saideep Reel/Roll Pallet Truck facilitates smooth & easy movement of warp beams or rolls. The beam flanges are rested on the trolley while transporting.
- Capacity – 500kg. to 2.5 Ton
- Reel Diameter – 900 to 1200 mm
- Lifting Height – 200 mm
- Long operating life & Low Maintenance
- Cylindrical loads can be lifted from the floor and transported.
100 in stock
Description
reel pallet truck seller roll truck – saideep industries
Reel / Roll Hand Pallet Truck & Material Handling Equipment Manufacturers India with affordable prices.
The Products in uses in Vertical Reels / Roll / Beams Lifting.
enhance after-sales service
Low Maintenance Products – AMC will be provide n request.
12 Months Warranty
our roll pallet uses in various industry business - packaging, fmcg, food industry, print industry.
| Capacity | 500kg to 2.5 Ton |
|---|---|
| Diameter of beam (mm) | 750 – 1200 |
| Fork length | 1150 MM |
|---|---|
| Max. Fork Width | 760 MM |
| Fork Wheel | 80 x 70 |
| Steering Wheel | 170 x 50 |
| Hydraulic Unit | 1 Nos. Vertical Mounted Hyd. EN-8 ground and hard chrome plated piston Hand Operated Pump with Honned Hyd. Cylinder & Hard Chrome Plated Piston Rod. Hyd. Pump Includes ‘Pu’ & Plate Based Teflon Oil Seals With Built In Overload Protection Valve. |
| Wheels | Wheel Material – Nylon 2 Nos. 170 x 50 mm. Size Wheels at Front (Handle) Side & 2 Nos. 80 X 70 mm. Size Load Roller Wheels at Rear Side. All Wheels – Heavy Duty Red PU Wheels – Contains Double Ball Bearings For Easy Movement. |
| Handle | Designed For Best Maneuverability & Made Of M.S. Pipe |
| Paint | Entire structure shall be powder coated or auto finish painted |
| Qty. 20′ Feet Container (Pcs.) | 180 / 144 |
|---|
Request Call-Back
Additional information
| Weight | 125-150 kg |
|---|---|
| Capacity | 500kg. to 2.5 Ton |
| Wheel | Nylon |
Related products
-

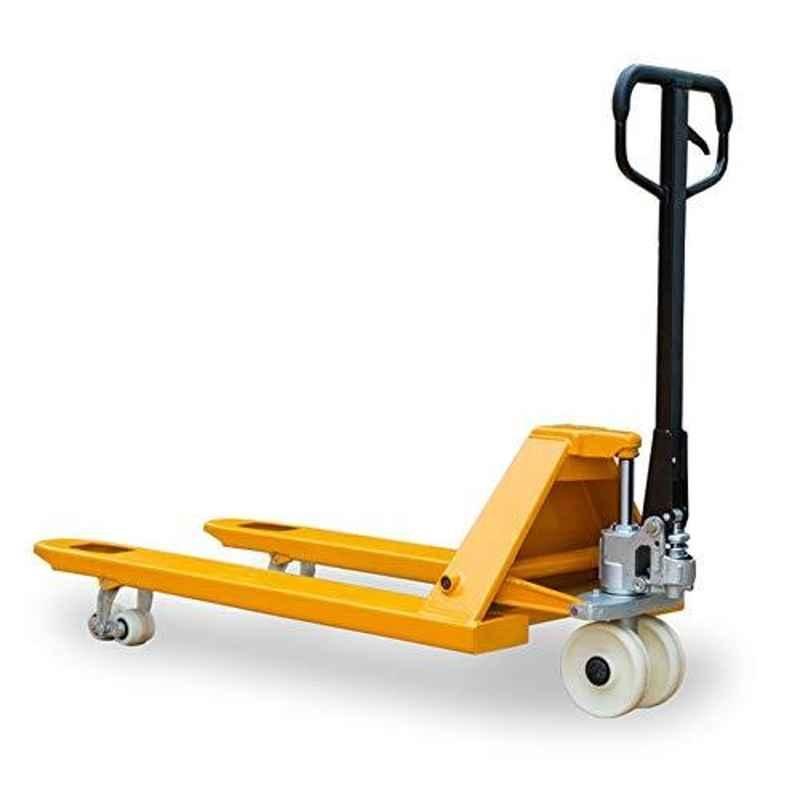

5 Ton Hand Pallet Truck
