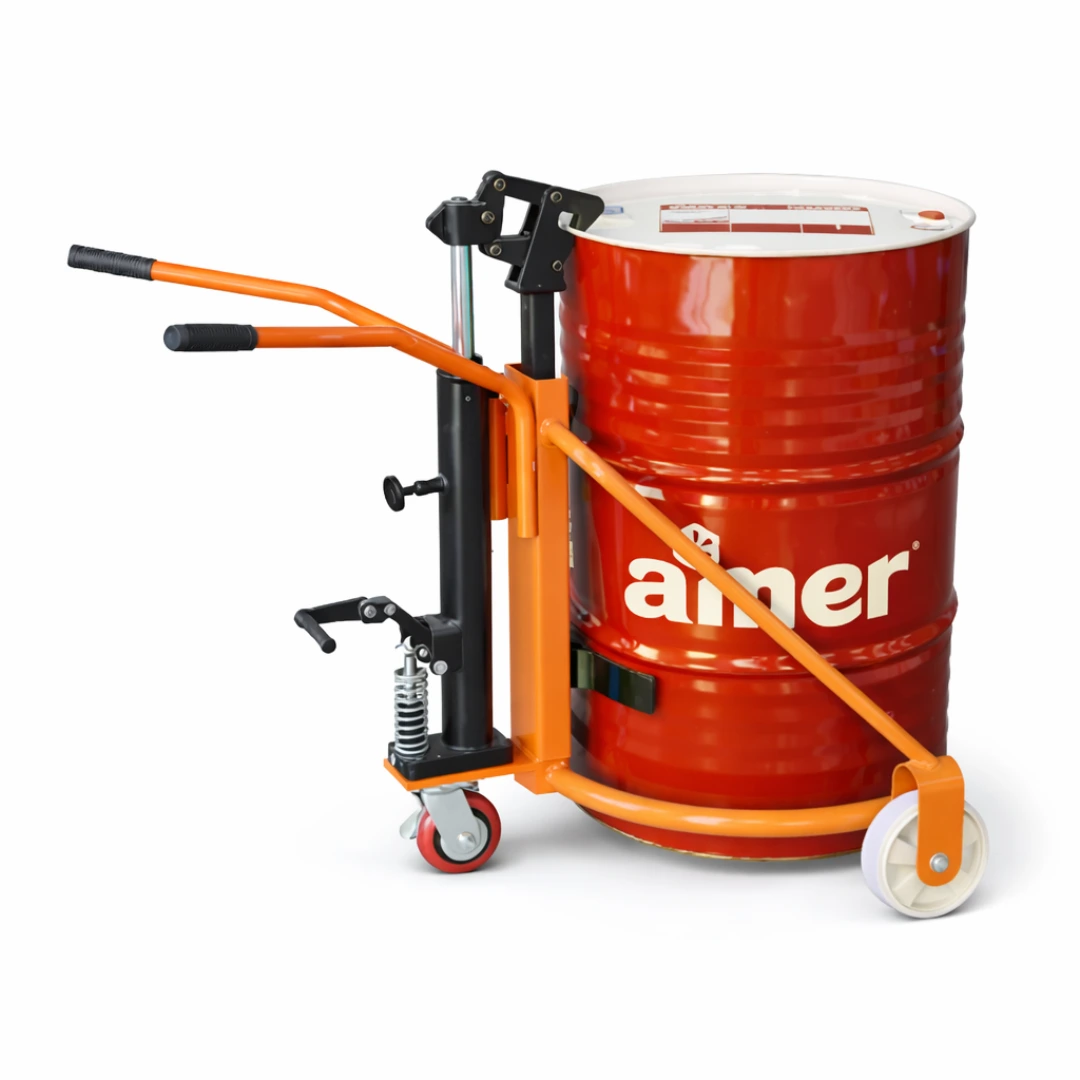

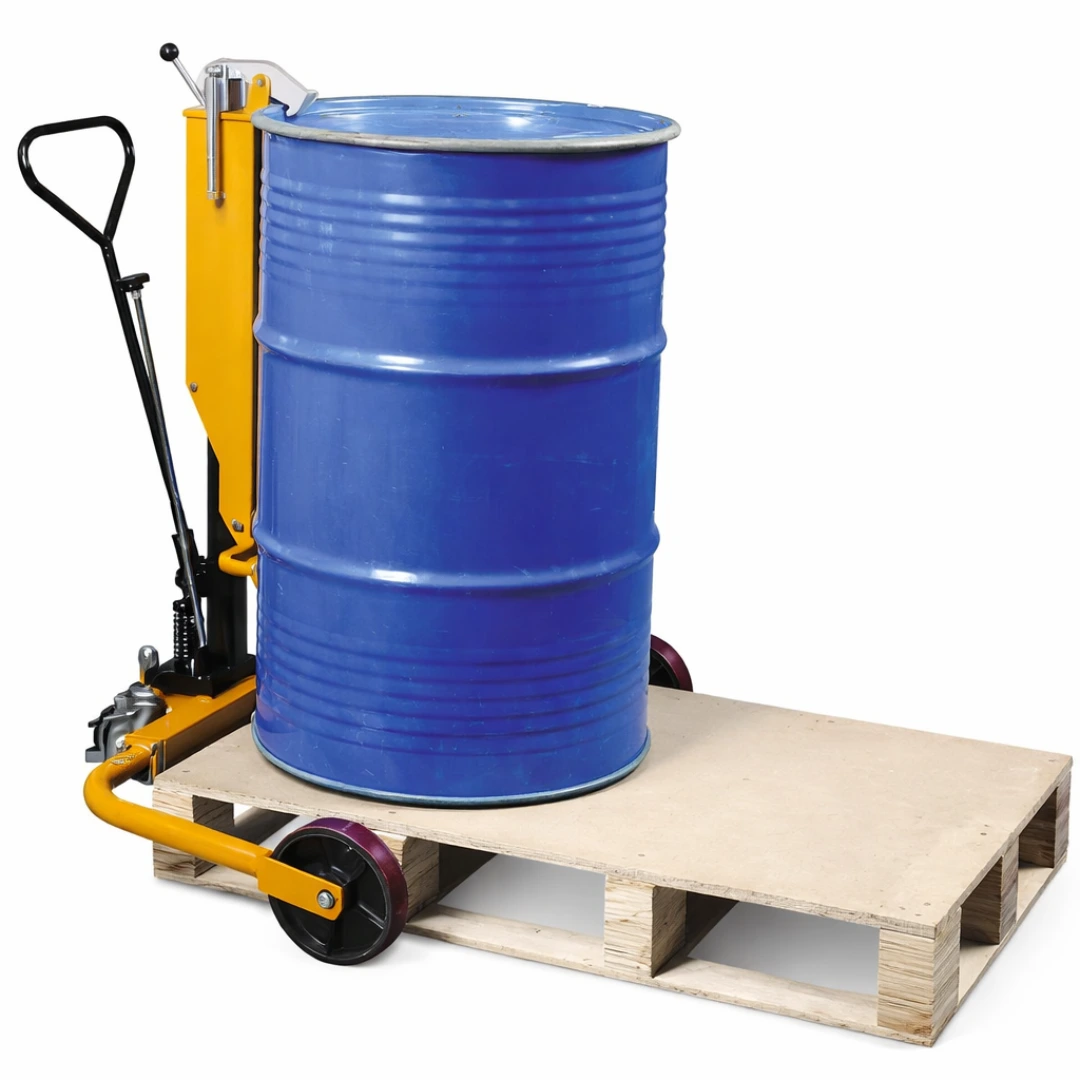

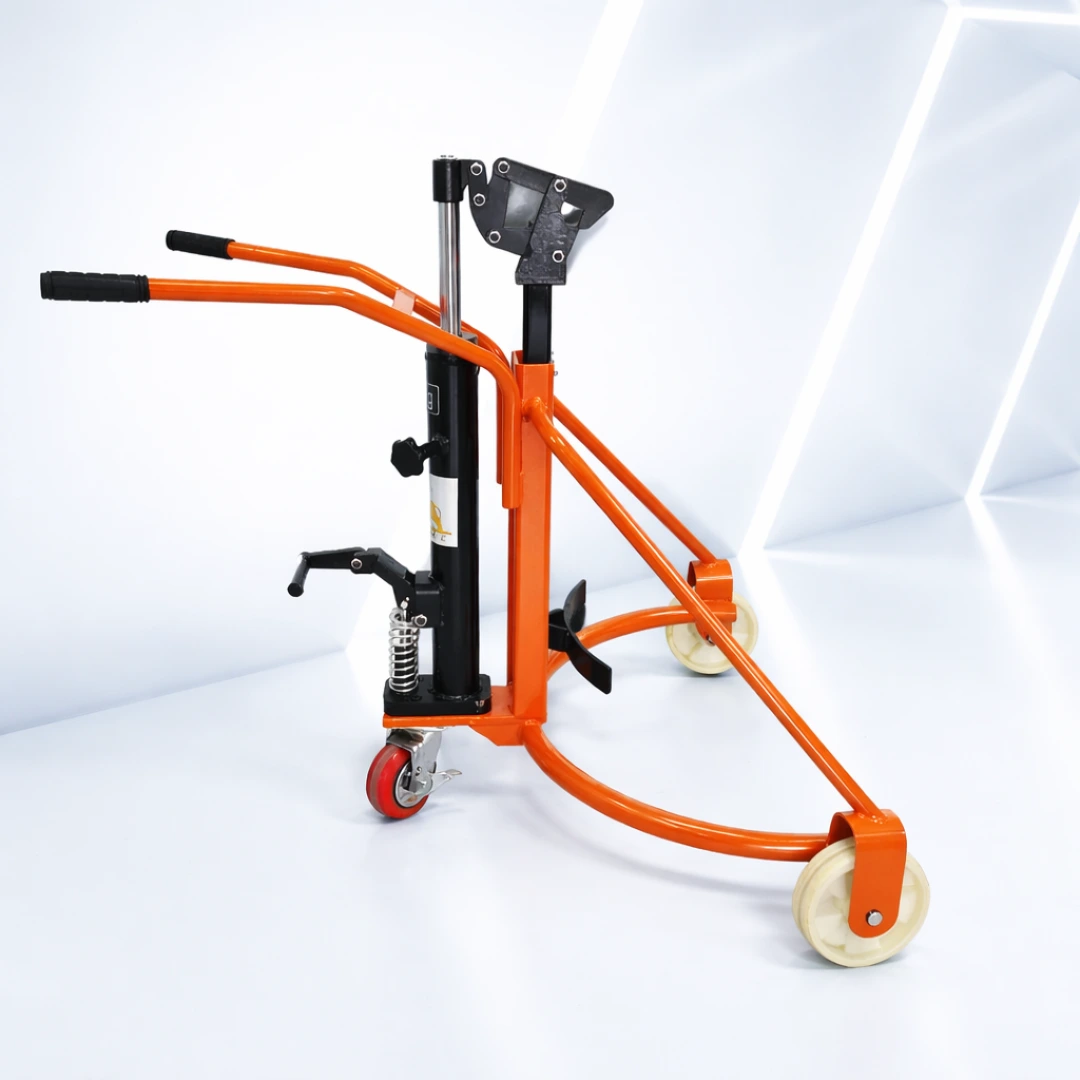

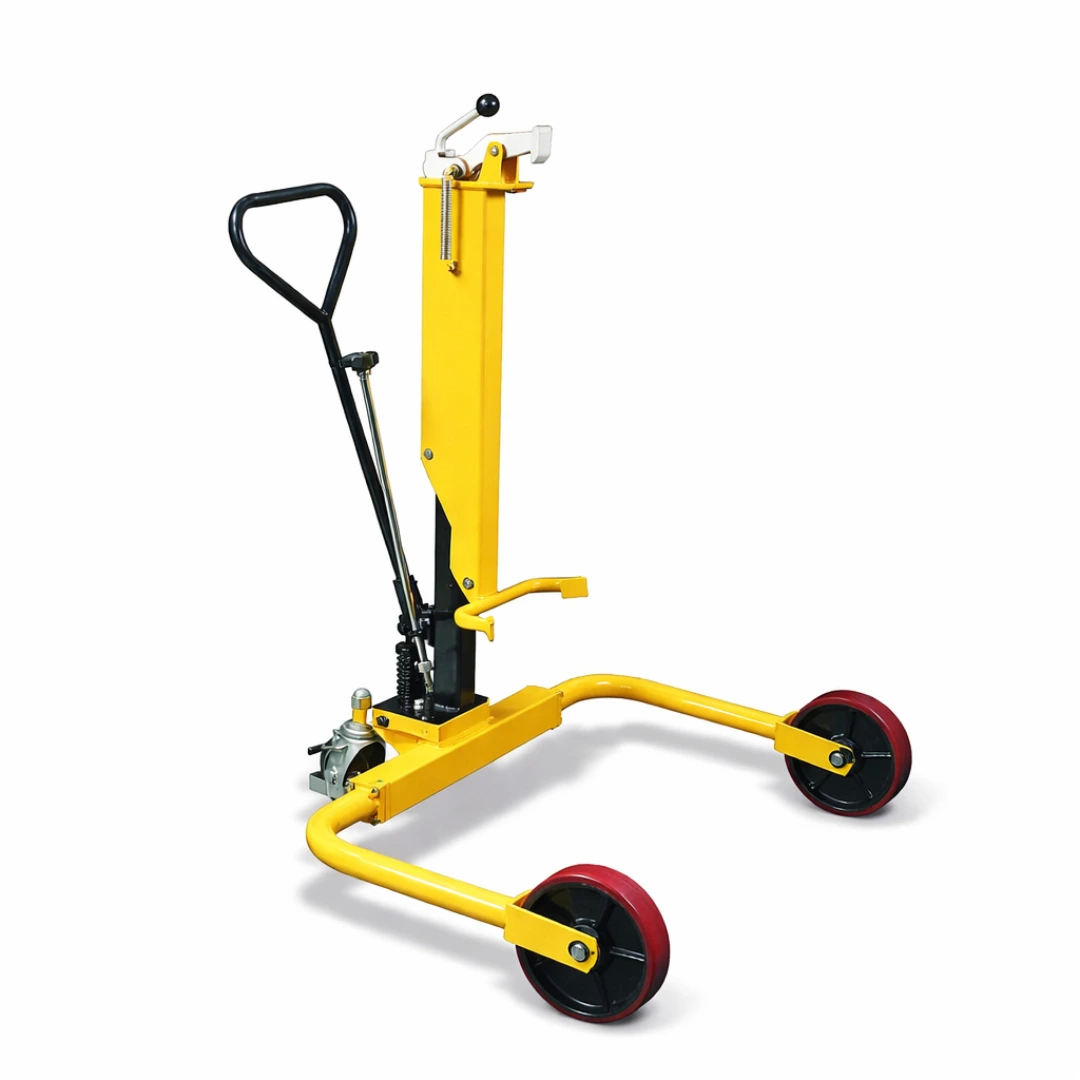

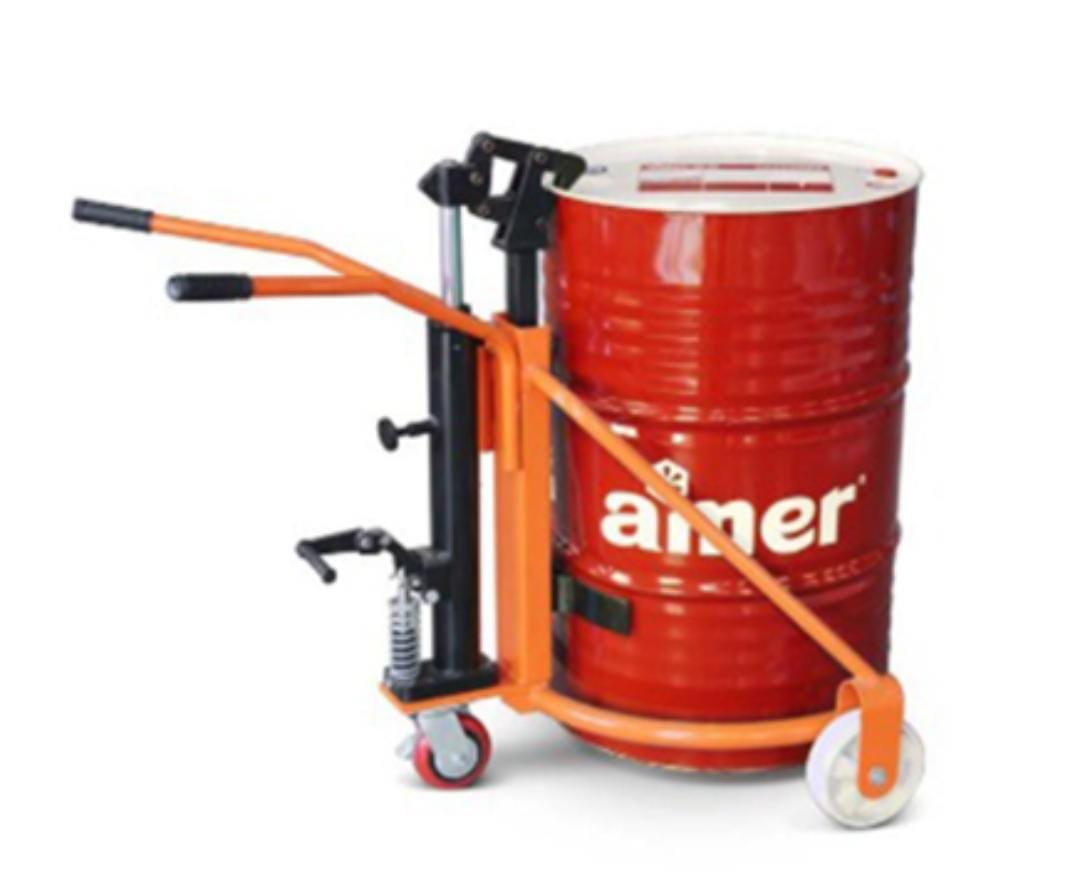

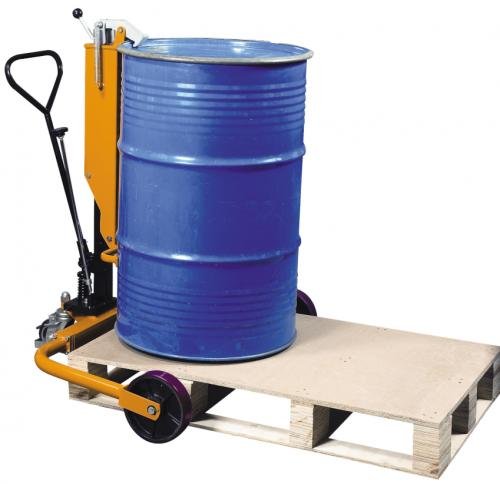

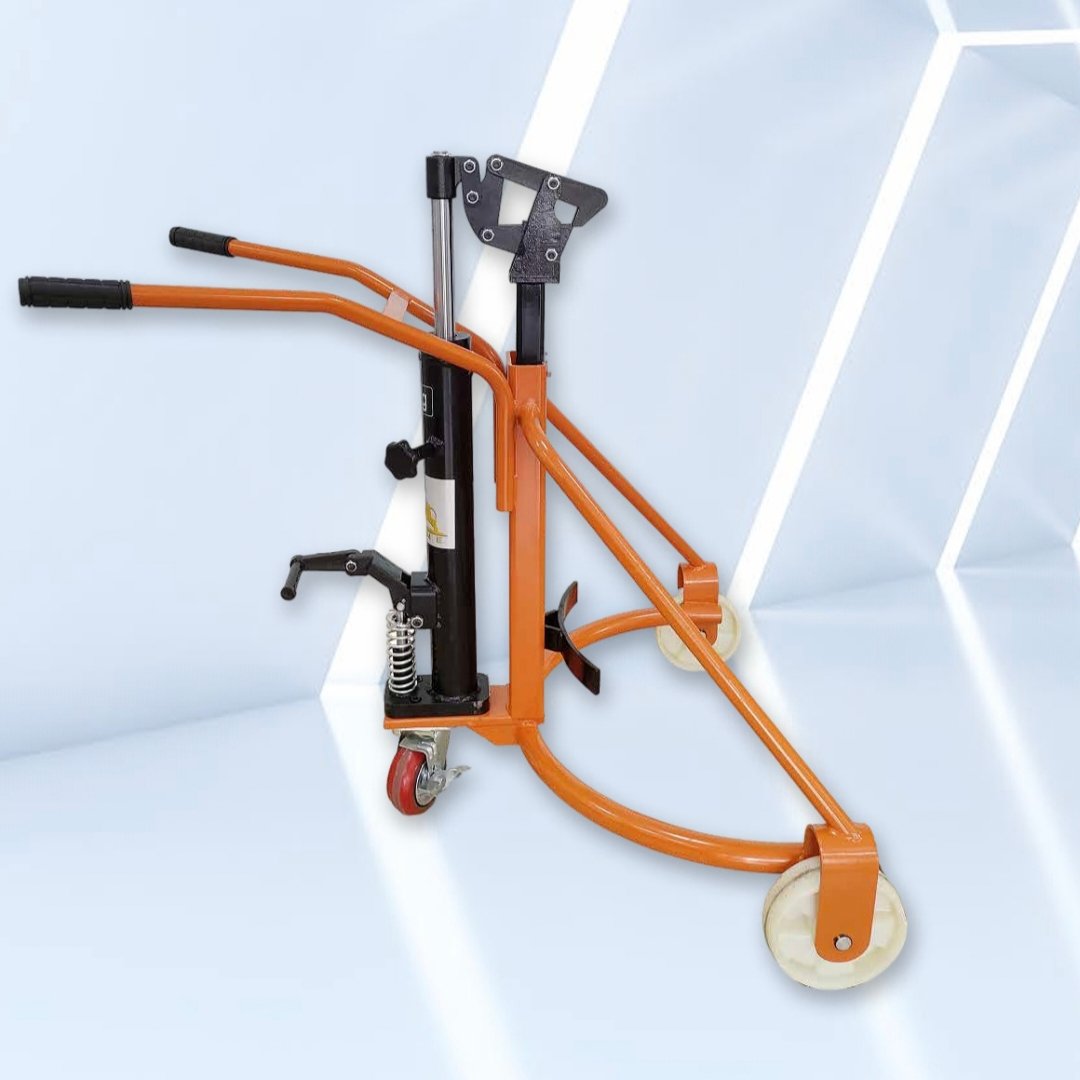

Drum Palletizer

25,500.00

Model No – SI-DE107

Drum Palletizer, which is made from high grade material and advanced technology. These all Drum Equipment products are known for their unique features like durability, efficiency and long life service for our clients.

  • Capacity – 0.5 – 1 Ton
  • Structure Weight – 70 to 72kgs
  • Fork (mm) – 1150 (L) x 550 (W)
  • Turning Radius – 114 Degree

100 in stock

Description

material handling hand pallet truck india – saideep ind.

Pioneer Leader of Hand Pallet Truck & Material Handling Equipment Manufacturer India

enhance after-sales service

Maintenance and AMC will also be available.

Structure Weight70 to 72 kg.
Capacity2.5 Ton
LIFT 90MM / STROKE (200MM / Height)
Turning Radius114 Degree
Fork150MM
Min. Fork Height85 MM
Max. Fork Height200 MM
Fork Length1150 MM
Fork Width550 MM
Lower SpeedContinuously Variable
Hydraulic Unit1 Nos. Vertical Mounted Hyd. EN-8 ground and hard chrome plated piston Hand Operated Pump with Honned Hyd. Cylinder & Hard Chrome Plated Piston Rod. Hyd. Pump Includes ‘Pu’ & Plate Based
Teflon Oil Seals With Built In Overload Protection Valve.
Wheels

Wheel Material – Nylon

2 Nos. 170 x 50 mm. Size Wheels at Front (Handle) Side & 2 Nos. 80 X 70 mm. Size Load Roller Wheels at Rear Side.
All Wheels – Heavy Duty Red PU Wheels – Contains Double Ball Bearings For Easy Movement.

Handle3 Lever Position Handle (Lift/Lock/Release)
PaintEntire structure shall be powder coated or auto finish painted
Qty. 20′ Feet Container (Pcs.)180 / 144

Request Call-Back

Additional information

Weight 70-72 kg
Dimensions 1150 × 550 × 200 mm
Load Capacity

500-1000 Kgs.

Color

Rustic Red, Yellow Golden
